AI-HUB Development Kit
All-in-one AI, sensor, voice and gesture console with a mini AGV
What is it?
AI-HUB teaches the full cycle of sensing, decision-making and action in one system. Its console — built on an Arduino MEGA 2560 — combines offline voice recognition, colour, gesture and infrared sensing, a joystick, buttons and LEDs, and controls RoboxRise arms such as Mirobot, MT4 and Haro380 over RS485.
An AI vision + suction end-tool lets the robot recognise and pick objects, and a Mini AGV adds autonomous navigation on the included scene map. More than 15 experiments with source code and videos come with the online textbook.
Who is it for?
Departments and programme levels this system is designed for.
- Schools (K7–K12)
- CSE
- ECE
- AI & Data Science
- Mechatronics
What can students learn?
Learning outcomes covered by the curriculum.
- Arduino MEGA 2560 fundamentals
- Buttons, LEDs, potentiometer and relays
- Gyroscope and joystick input
- Colour sensing
- Offline voice recognition and announcements
- Gesture control
- AprilTag and AI vision recognition
- Mini AGV navigation
- Robot arm control over RS485

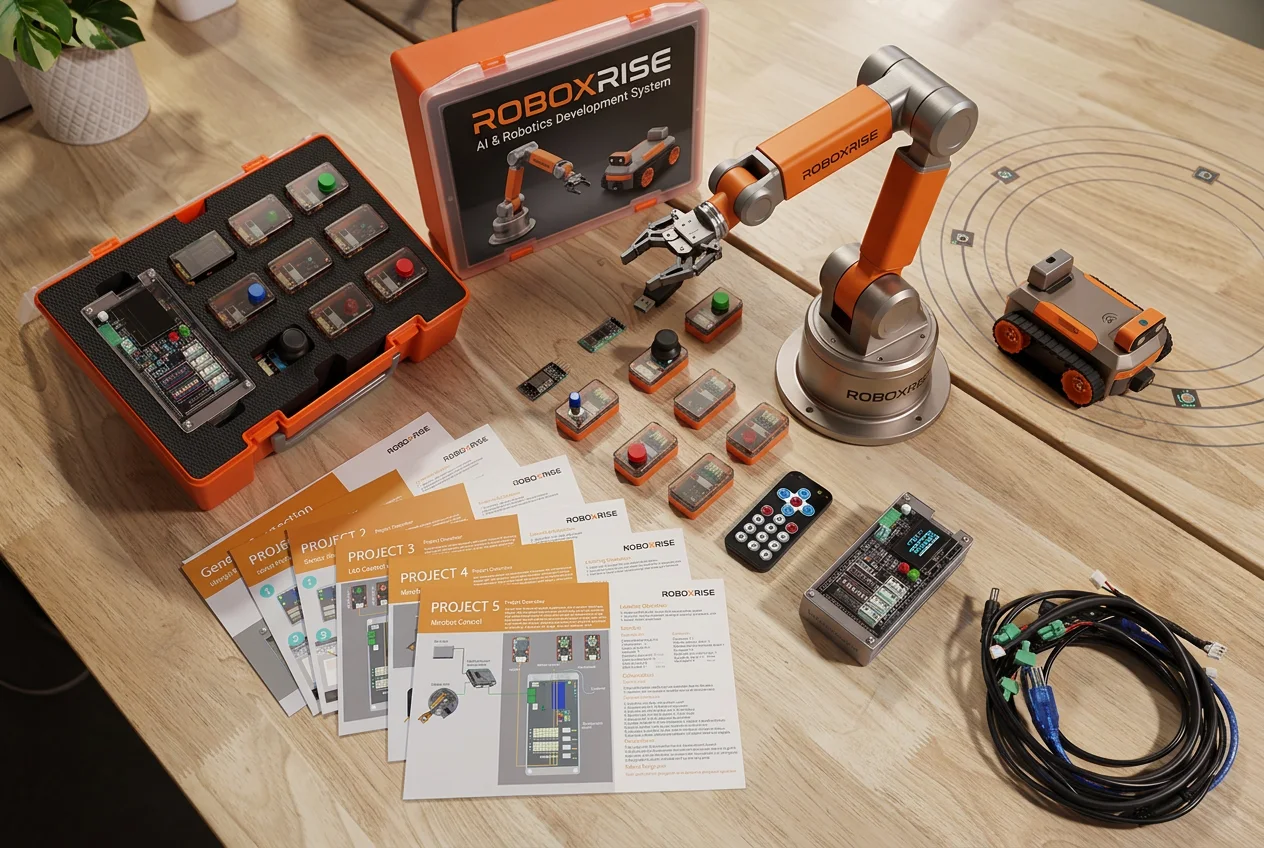

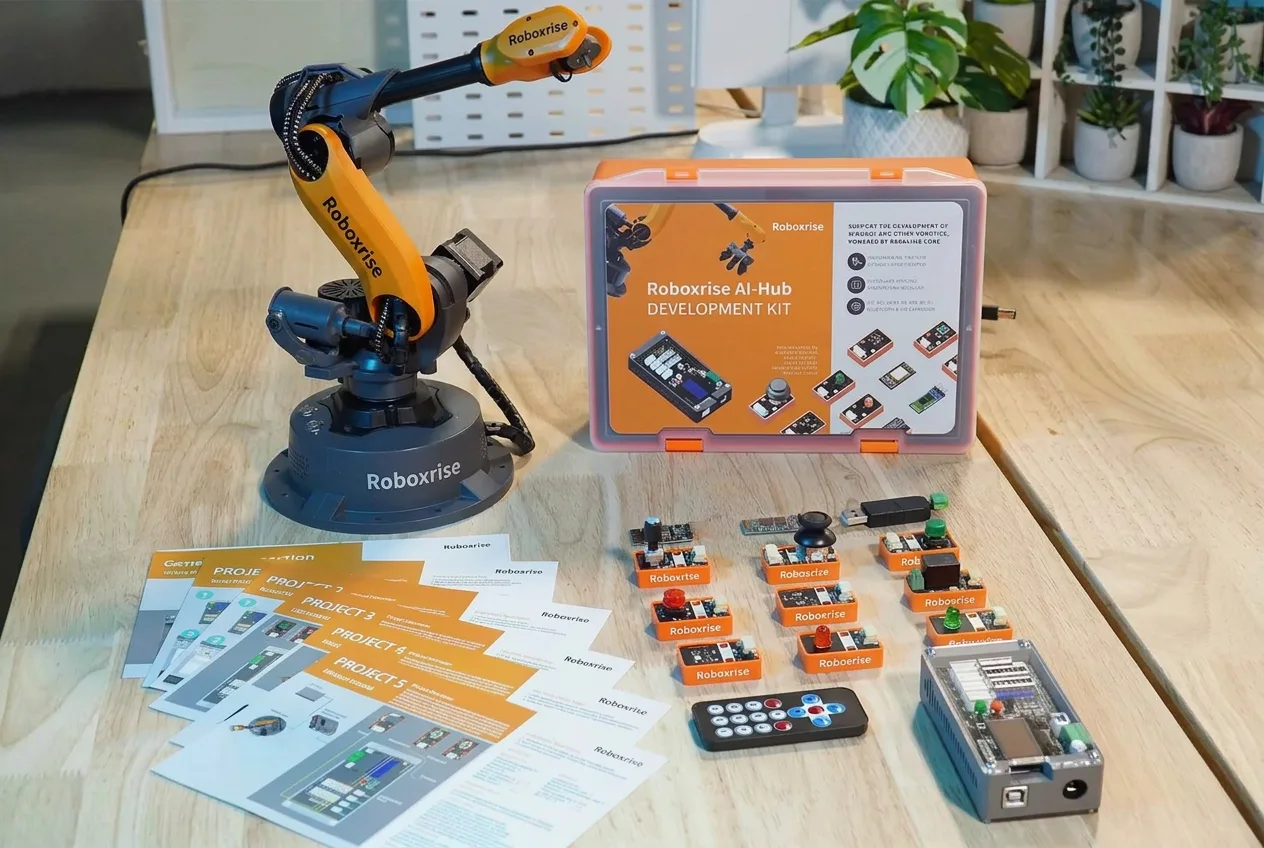

What is included?
Hardware in the box, plus what RoboxRise delivers with it.
In the box

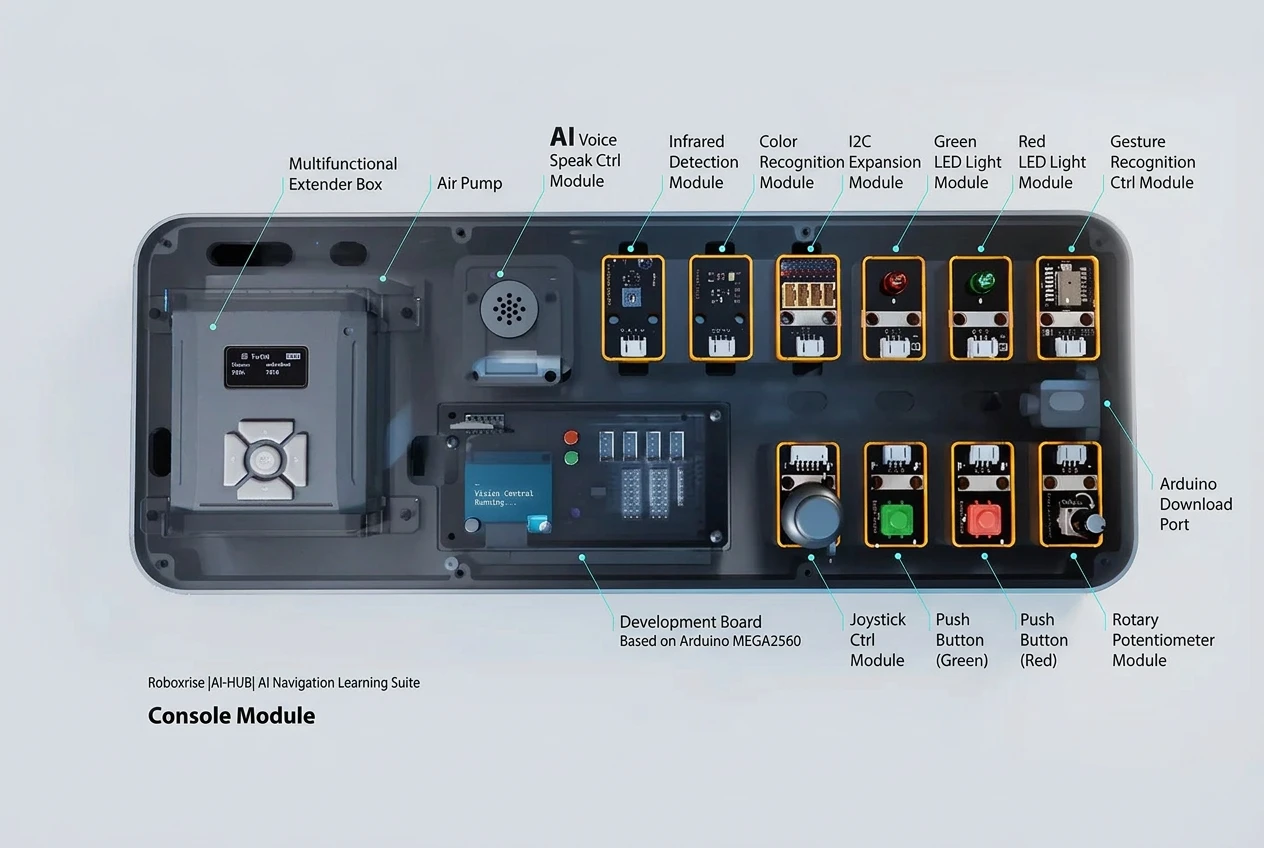

- AI-HUB Console Module X 1 (includes: one development board based on Arduino MEGA 2560, one multifunctional extender box for the robotic arm, one built-in air pump, one built-in AI voice speak control module with offline language learning voice recognition sensor and voice announcement function, one infrared detection module, one color recognition module, one I2C expansion module, one green LED, one red LED, one gesture recognition module, one joystick control module, one green button, one red button, and one rotary potentiometer)
- AI Vision + Suction Cup End Tool × 1
- Mini AGV Set X 1 (includes: one Mini AGV, one fan module, and one RGB color light module)
- Scene Map × 1
- AI-HUB Online Textbook Access Card X 1 (includes more than 15 detailed experiments with source code and videos for educators)
- IR Remote Control × 1
- USB to RS485 Module × 1
- TF Card × 1
- Wi-Fi Module × 1
- Bluetooth Module × 1
- Blocks Set X 1 (includes: one large cylinder, one small cylinder, one large cuboid, one small cuboid)
- Cables Package X 1 (includes: one AI vision module cable, one serial cable XH 0.5m, one RS485 cable 1m, one USB-TypeC cable, one Mini AGV charging cable, and one DC 2-way splitter cable)
- Product List × 1
Delivered by RoboxRise
- Experiment manual, sample code and demonstration videos
- Faculty training (train-the-trainer)
- Installation and commissioning at your institution
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
15 of the lab experiments students perform on this system.
- Push-button input and LED control
- Rotary potentiometer and LED dimming
- Six-axis gyroscope motion sensing
- Two-axis joystick direction control
- Colour sensor detection
- Relay control of external devices
- Robot homing and status query
- Angle and coordinate mode control
- G-code file execution
- Dual-arm control via RS485
- Manual, voice and gesture control
- Mini AGV navigation
- Robot arm + Mini AGV integration
- AprilTag visual recognition
- Traffic-light simulation
Grow your lab
Compatible systems that connect directly to this one.
Technical specifications
| Controller | Arduino MEGA 2560 (AVR), 5 V; RS485, Modbus |
|---|---|
| Sensors | Joystick, gyroscope, colour (3–10 mm), IR, buttons, potentiometer (270°), LEDs |
| Voice module | Offline recognition, 50 user-defined keywords, I²C, voice announcements |
| Vision module | RISC-V 64-bit dual-core; face, object, line, colour and tag recognition; UART / I²C / USB |
| Mobile robot | Mini AGV with fan and RGB light modules, scene map |
| Connectivity | Wi-Fi and Bluetooth modules, USB-to-RS485 |
| Model | WL-AC-AIDS-2560 |
| Curriculum | Exploring AI, Robotics and Sensors with Arduino (K7–K12), 15+ experiments |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
Is institutional pricing available?
Yes. We provide a formal quotation based on configuration and quantity, including warranty, installation and training terms.
Can this integrate with our curriculum or existing lab hardware?
Most systems support open APIs and standard robotics stacks such as ROS / ROS2 and MATLAB. Share your requirements and our engineers will advise on integration.
Can we see a demonstration?
Yes — book a meeting for a live demonstration online, at your institution or at our Indore facility.
