MT4 Edu Kit
4-axis all-metal, rebuildable desktop industrial robot
What is it?

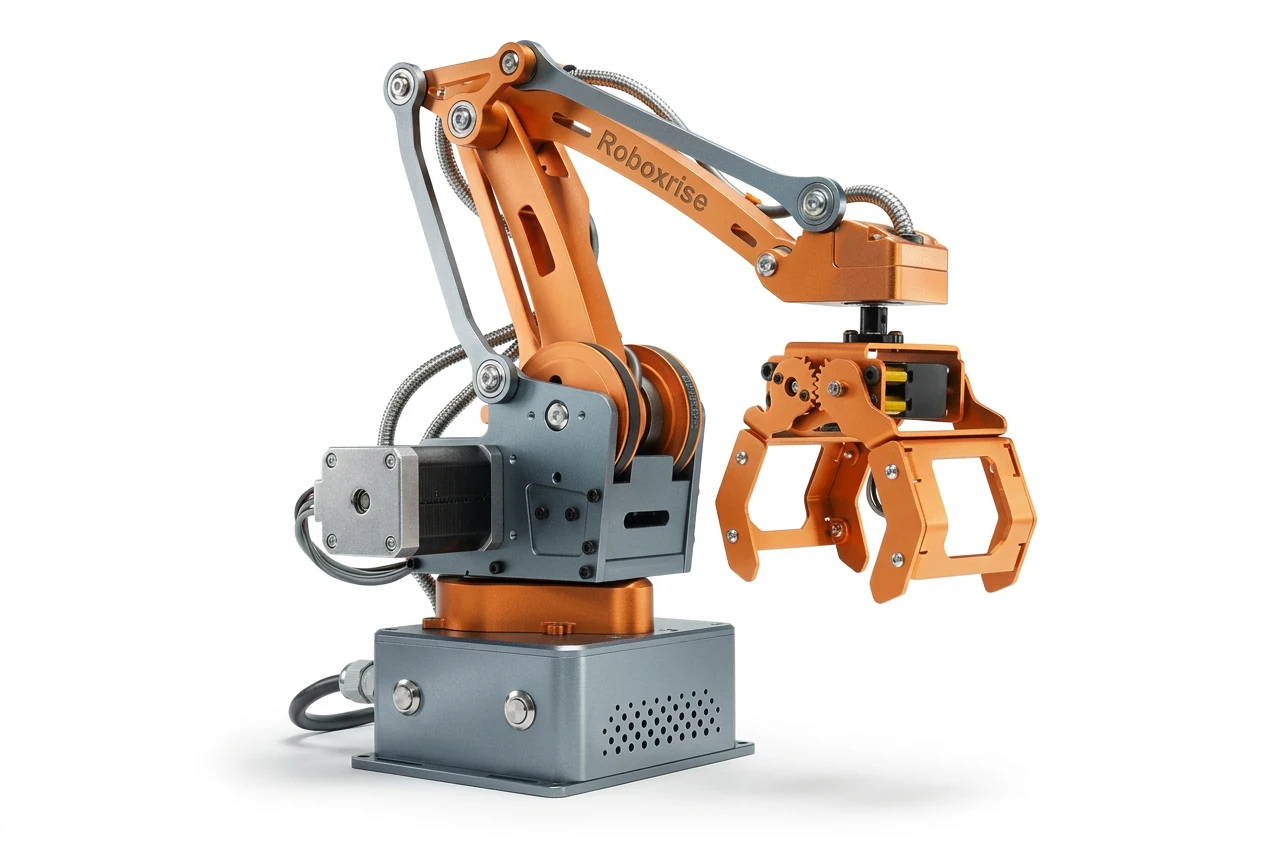

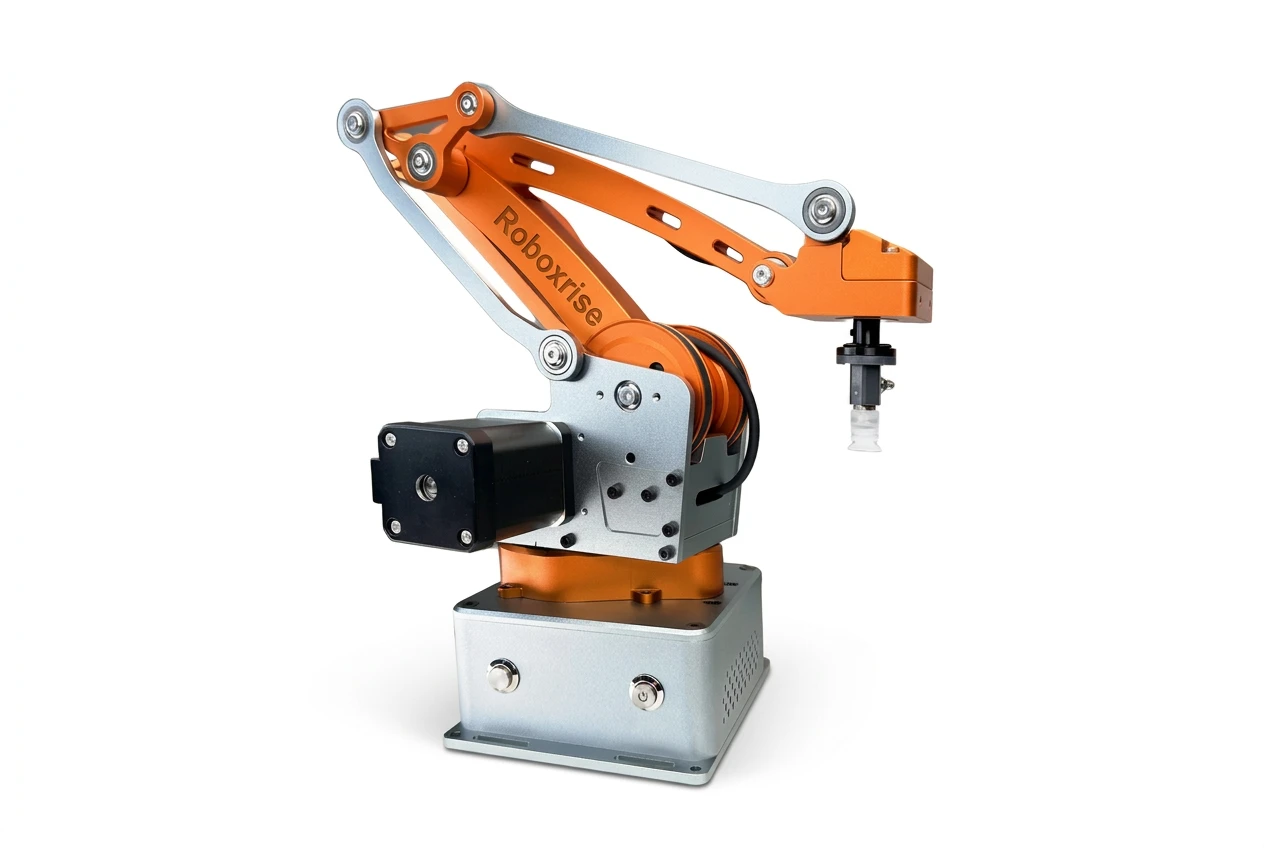

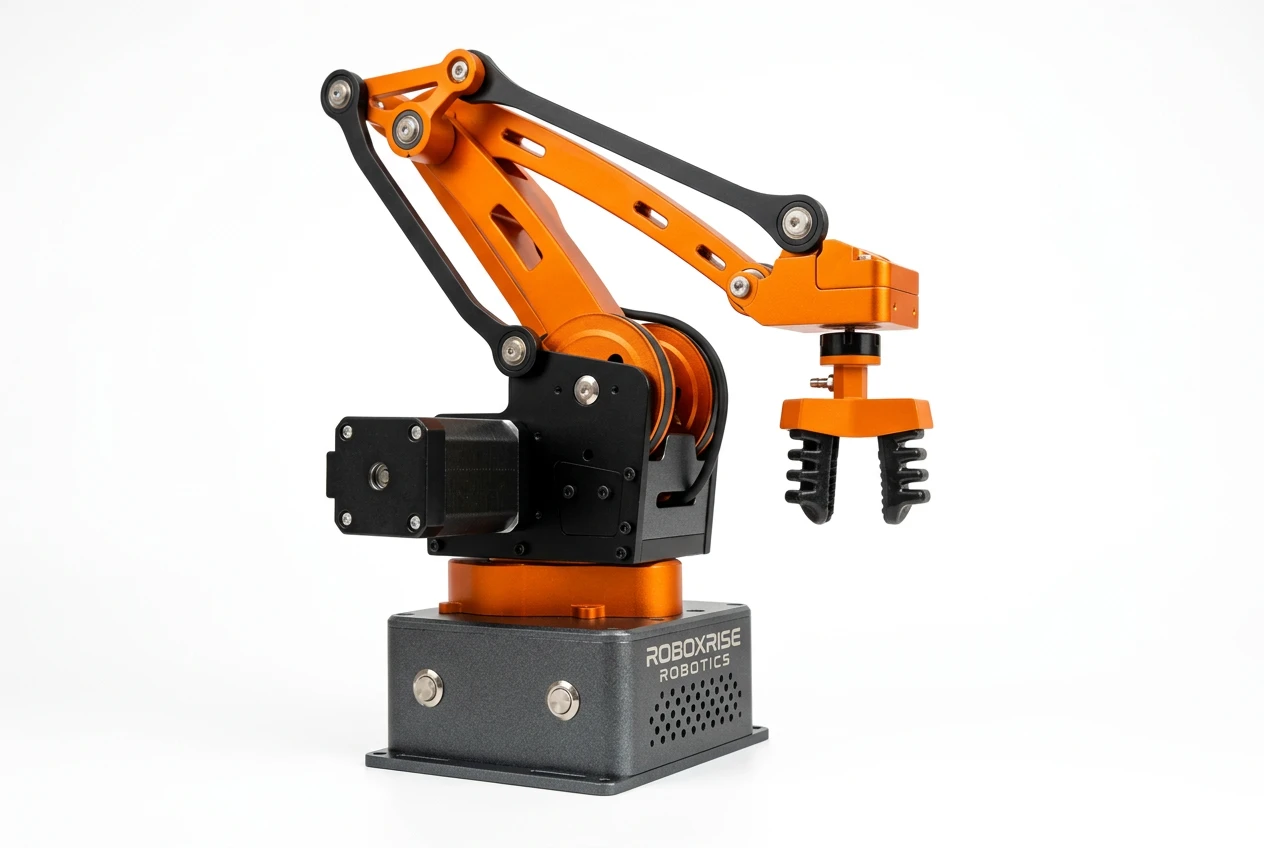

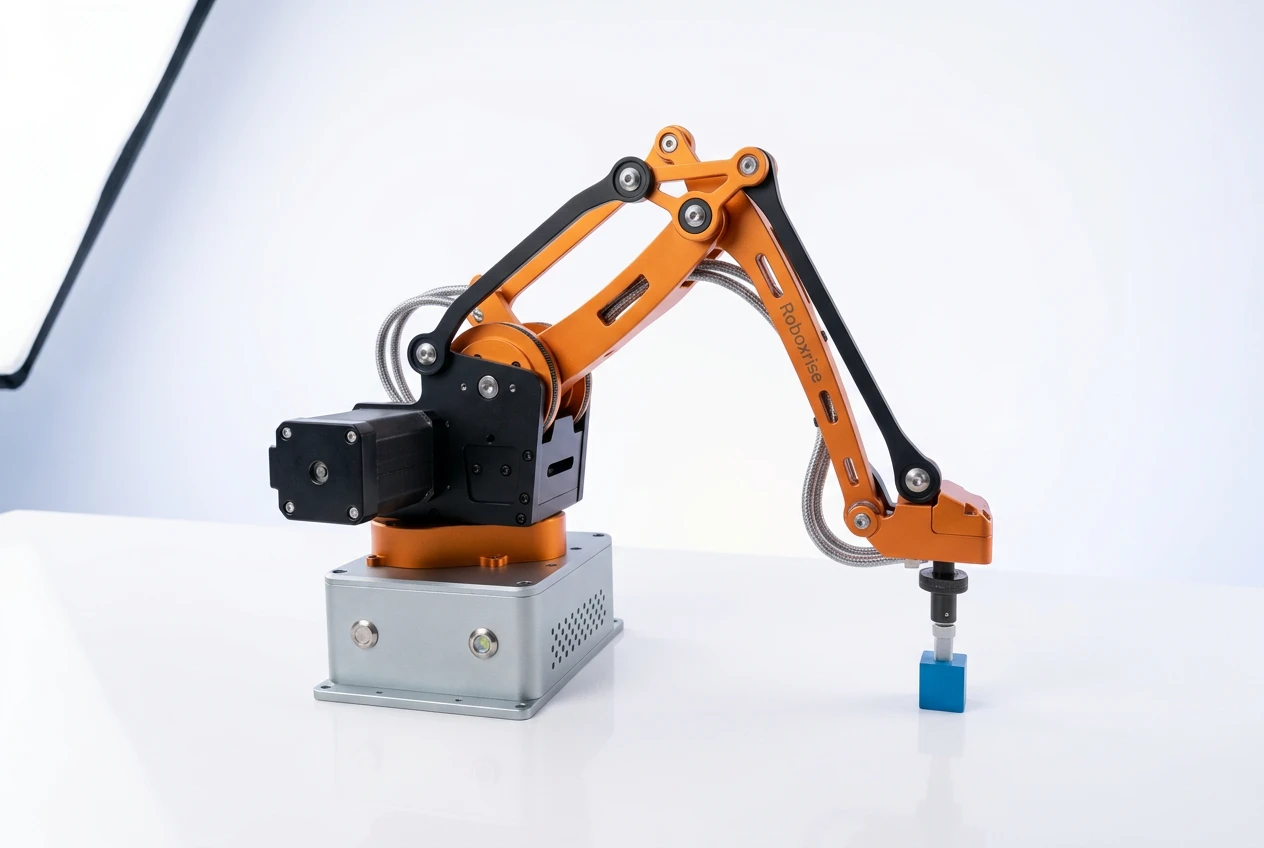

MT4 is a compact all-metal robotic arm with a footprint half the size of an A4 sheet. Built from CNC-machined metal parts, it can be taken apart and rebuilt by students — so they learn a robot's mechanical structure from zero to one, not just how to program it.
It supports PC software, a teach pendant and vision control, with functions such as writing, laser engraving and material handling. Connectivity includes Bluetooth, Wi-Fi, serial and RS485, with secondary development in Python, C/C++, ROS, V-REP and MATLAB.
Who is it for?
Departments and programme levels this system is designed for.
- Mechanical
- Mechatronics
- Robotics & Automation
- Electrical & Electronics
- Production
- CSE
What can students learn?
Learning outcomes covered by the curriculum.
- Mechanical structure of a robot — disassembly and rebuild
- Robot coordinate systems and DH parameters
- Motion control commands and trajectory planning
- Graphical, teach-and-play and Python programming
- Material handling and palletising
- Writing, drawing and laser engraving
- ROS motion simulation
- Motion control from a microcontroller (AVR) and a PLC
- Voice control and AI vision (with add-ons)
What is included?
Hardware in the box, plus what RoboxRise delivers with it.

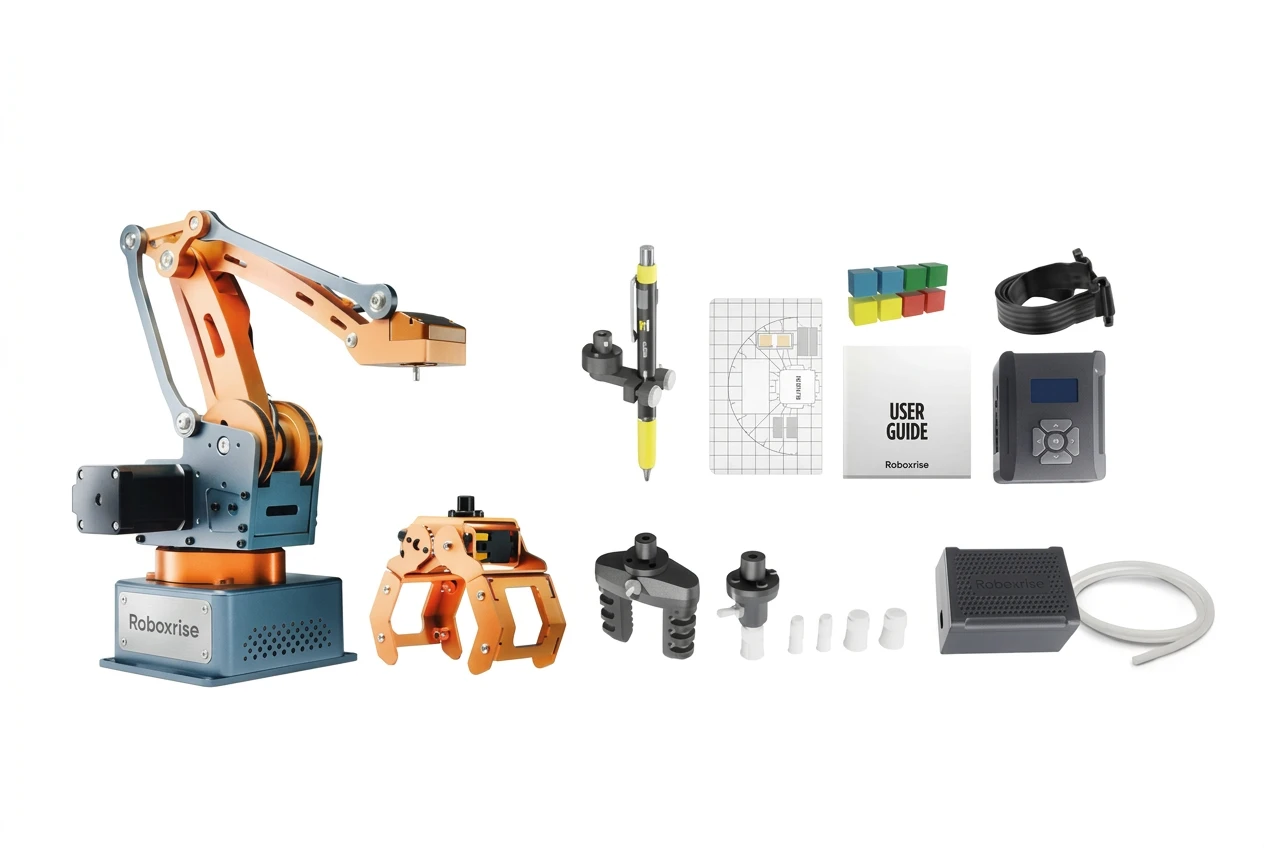

In the box
- MT4 Robotic Arm × 1
- Pen holder × 1
- Multifunctional extender box × 1
- Pneumatic edu set (including pneumatic box, suction cup, two-finger soft gripper) × 1
- Big metal servo gripper × 1
- Power supply & high-speed USB cable & IDC cable × 1
- Handbook × 1
- MCP server × 1
- Safety Carry Case × 1
Delivered by RoboxRise
- Experiment manual, sample code and demonstration videos
- Faculty training (train-the-trainer)
- Installation and commissioning at your institution
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
15 of the lab experiments students perform on this system.
- Disassembly and reassembly of the arm
- Joint and Cartesian jogging
- Robot coordinate systems
- DH parameters of a 4-axis arm
- Motion control commands
- Trajectory planning
- Teach-and-play programming
- Graphical programming
- Python programming
- Material handling and palletising
- Writing and drawing
- Motion simulation with ROS
- Motion control with a microcontroller (AVR)
- Motion control with a PLC
- Voice-controlled pick-and-placeuses included voice control box
Grow your lab
Compatible systems that connect directly to this one.
Technical specifications
| Axes | 4 (5th axis with optional Sliding Rail Set) |
|---|---|
| Repeatability | ±0.2 mm |
| Max payload | 500 g |
| Working radius | 350 mm |
| Net weight | 3.5 kg |
| Construction | All-metal, CNC-machined, rebuildable |
| Communication | USB, Bluetooth, Wi-Fi, RS485 |
| Programming | Graphical, teach-and-play, Python, C/C++ |
| Supported platforms | AVR microcontroller, AI processors, PLC, ROS, MATLAB, Omniverse, TensorFlow, PyTorch, YOLOv5, OpenCV, OpenMV |
| Applications | Writing & drawing, laser engraving, material handling, palletising, soft gripping, mobile AGV |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
Why choose MT4 over Mirobot?
MT4 is all-metal and rebuildable, so it suits programmes that teach mechanical design and assembly as well as programming. Mirobot is a 6-axis arm and better for kinematics and industrial-style programming.
Is there a school curriculum?
Yes — Introduction to Robotics for Beginners, a 50-lesson curriculum for K7–K12, plus the MT4 Programming and Control textbook for K9–K12 and university.
Can students really take it apart?
Yes. That is the point of MT4 — students learn the mechanism by disassembling and rebuilding it, then program what they built.
