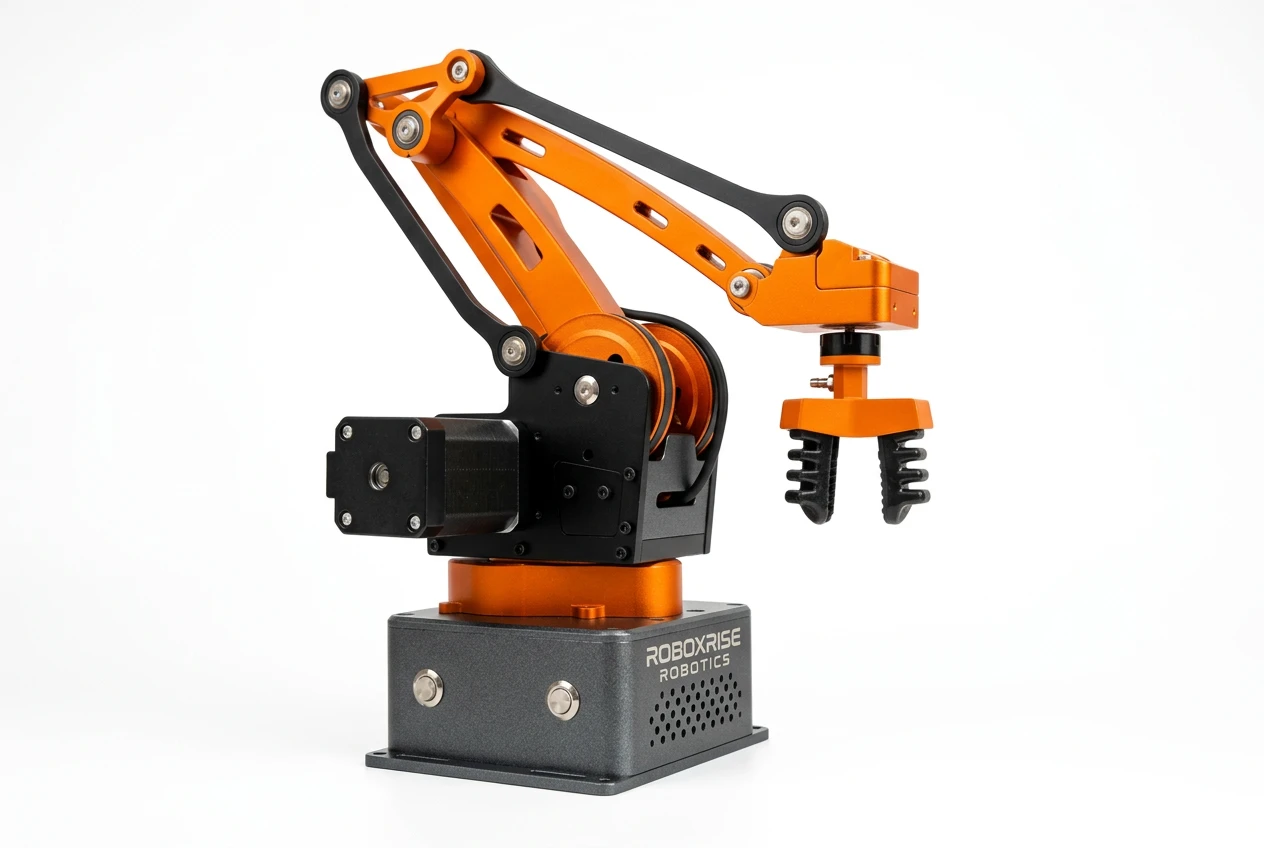

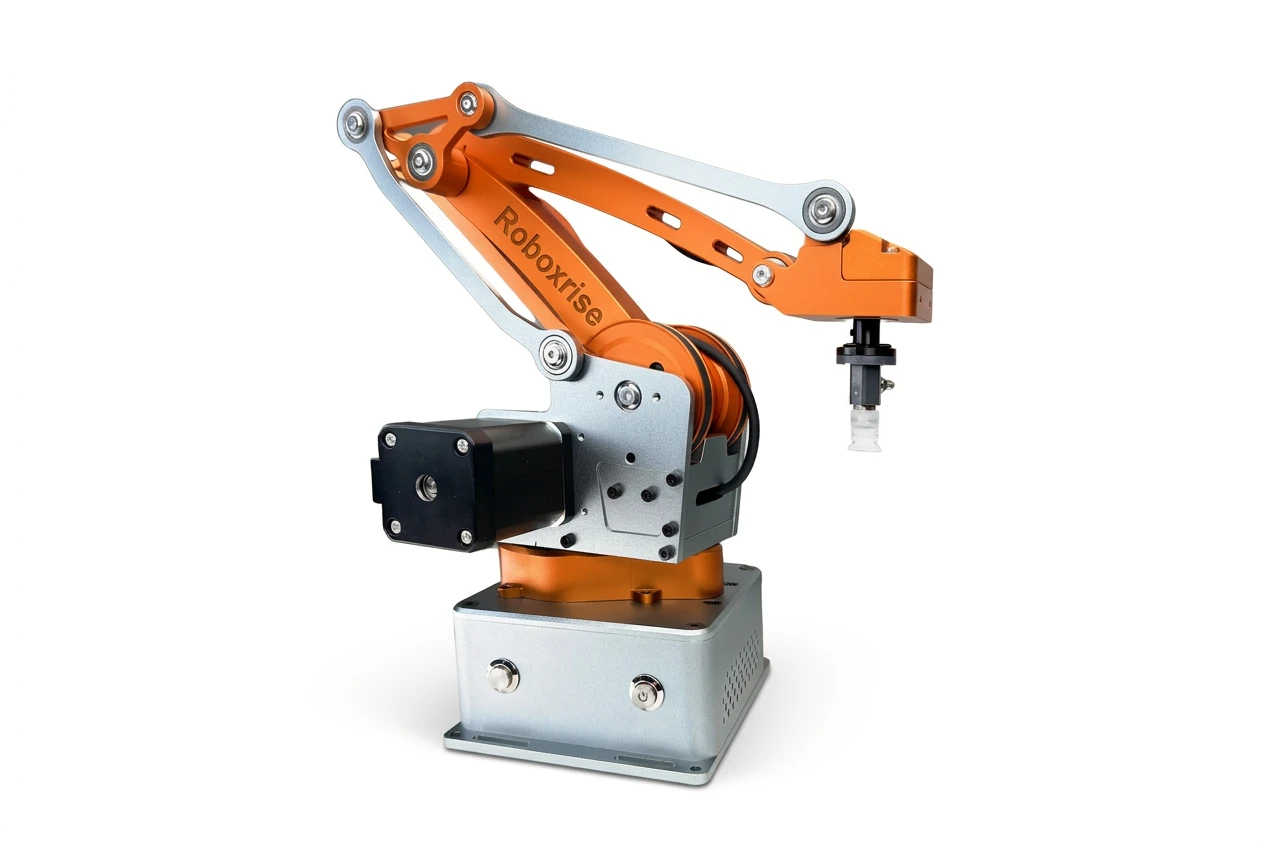

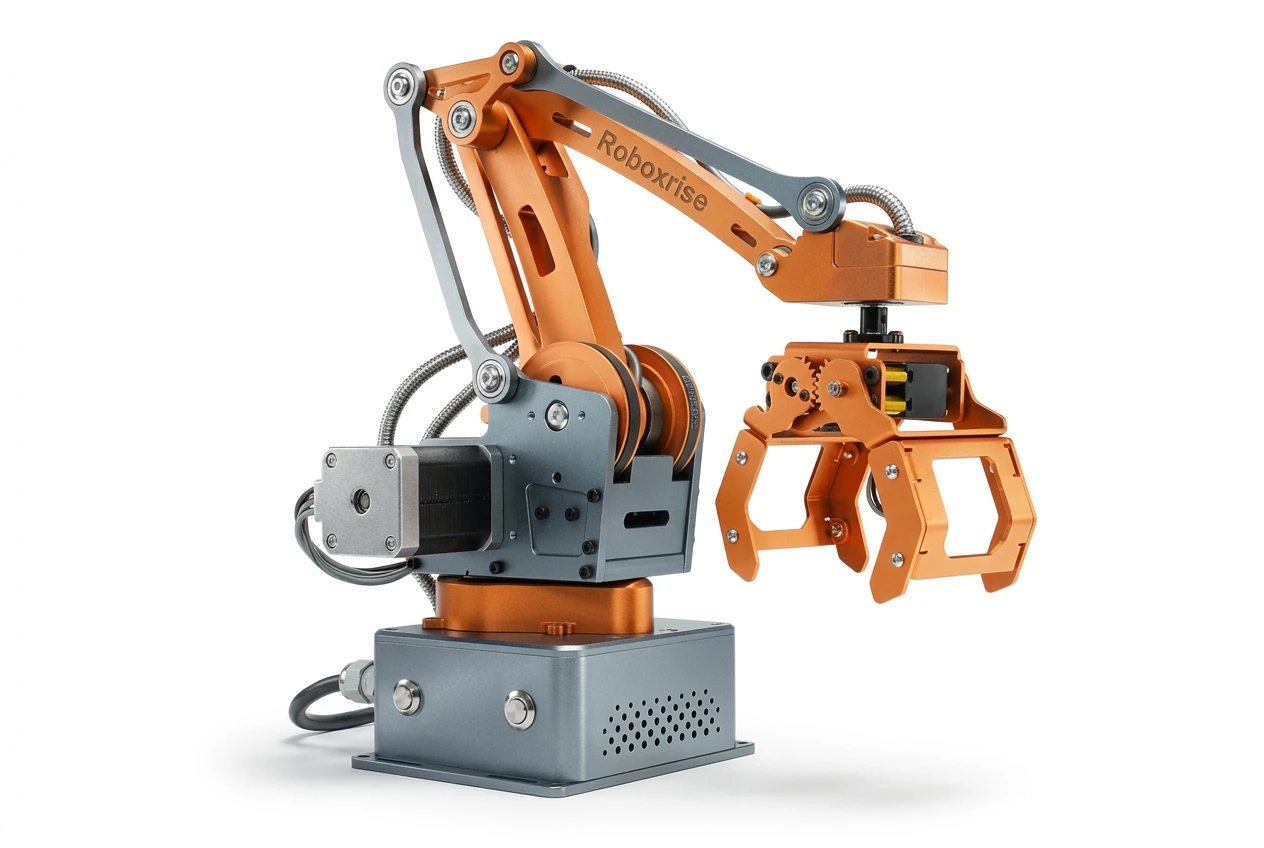

MT4 Advanced Kit
4-axis all-metal robot arm with electric, magnetic and voice-control extensions
What is it?
The MT4 Advanced Kit builds on the Edu Kit's precise, rebuildable 4-axis metal arm with a broader set of end-effectors and control modes for labs that need more experimental depth.
Alongside pneumatic and servo grippers it includes an electric gripper, an electromagnetic gripper and an AI voice-control box, plus a dedicated robot controller and a safety carry case — ideal for comparative end-effector studies, advanced lab projects and technology showcases.
Who is it for?
Departments and programme levels this system is designed for.
- Mechanical
- Mechatronics
- Robotics & Automation
- Electrical & Electronics
- Production
- CSE
What can students learn?
Learning outcomes covered by the curriculum.
- Mechanical structure of a robot — disassembly and rebuild
- Robot coordinate systems and DH parameters
- Motion control commands and trajectory planning
- Graphical, teach-and-play and Python programming
- Material handling and palletising
- Writing, drawing and laser engraving
- ROS motion simulation
- Motion control from a microcontroller (AVR) and a PLC
- Voice control and AI vision (with add-ons)
- Comparative end-effector studies
- Voice-commanded automation
What is included?
Hardware in the box, plus what RoboxRise delivers with it.

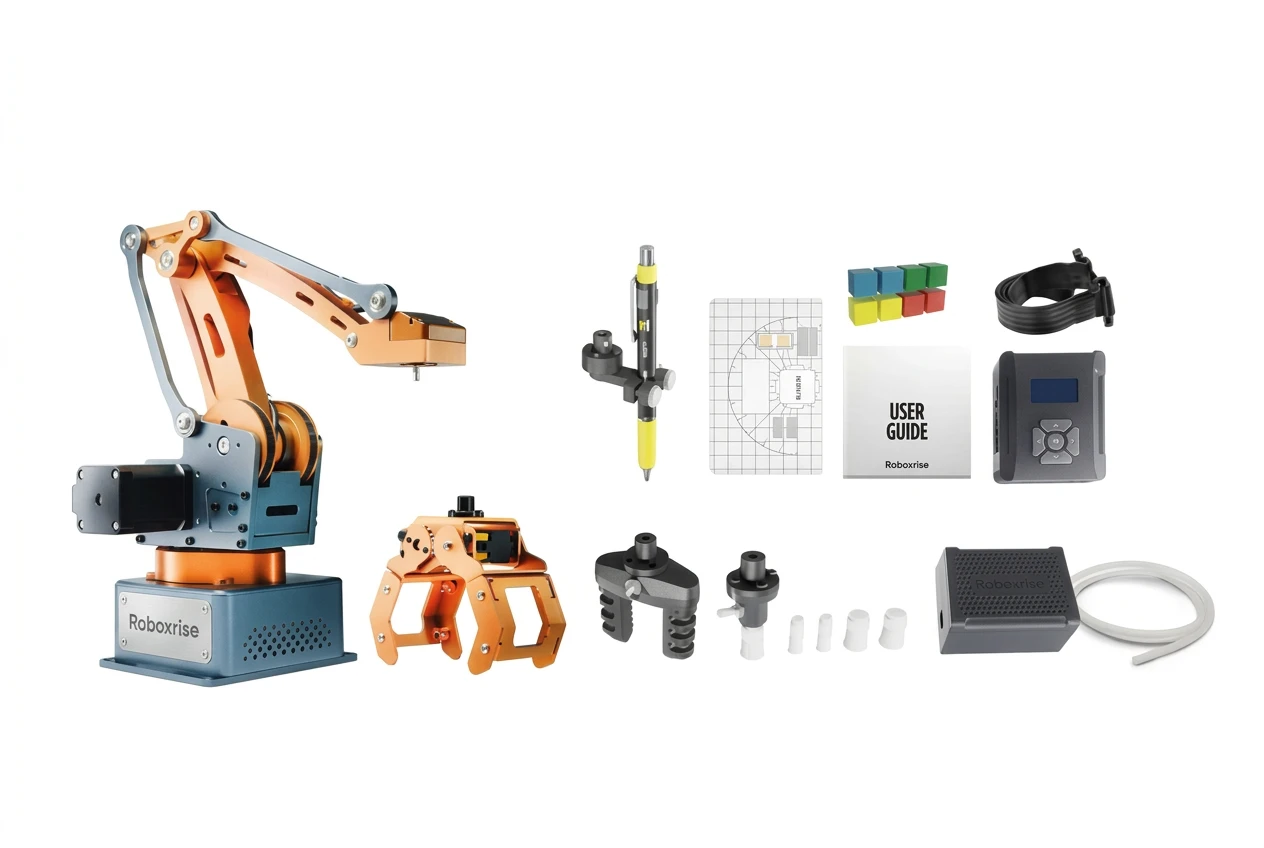

In the box
- MT4 Robotic Arm × 1
- Pen holder × 1
- Multifunctional extender box × 1
- Pneumatic pro set (including pneumatic box, suction cup, two-finger soft gripper, three-finger soft gripper) × 1
- Big metal servo gripper × 1
- Electric Gripper × 1
- Electromagnetic Gripper × 1
- AI Assistant Voice Control Box × 1
- Robot Controller (with USB cable) × 1
- Power supply & high-speed USB cable & IDC cable × 1
- Handbook × 1
- MCP server × 1
- Robot Controller (with USB cable) × 1
- Safety Carry Case × 1
Delivered by RoboxRise
- Experiment manual, sample code and demonstration videos
- Faculty training (train-the-trainer)
- Installation and commissioning at your institution
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
15 of the lab experiments students perform on this system.
- Disassembly and reassembly of the arm
- Joint and Cartesian jogging
- Robot coordinate systems
- DH parameters of a 4-axis arm
- Motion control commands
- Trajectory planning
- Teach-and-play programming
- Graphical programming
- Python programming
- Material handling and palletising
- Writing and drawing
- Motion simulation with ROS
- Motion control with a microcontroller (AVR)
- Motion control with a PLC
- Voice-controlled pick-and-placeuses included voice control box
Grow your lab
Compatible systems that connect directly to this one.
Technical specifications
| Axes | 4 (5th axis with optional Sliding Rail Set) |
|---|---|
| Repeatability | ±0.2 mm |
| Max payload | 500 g |
| Working radius | 350 mm |
| Net weight | 3.5 kg |
| Construction | All-metal, CNC-machined, rebuildable |
| Communication | USB, Bluetooth, Wi-Fi, RS485 |
| Programming | Graphical, teach-and-play, Python, C/C++ |
| Supported platforms | AVR microcontroller, AI processors, PLC, ROS, MATLAB, Omniverse, TensorFlow, PyTorch, YOLOv5, OpenCV, OpenMV |
| Applications | Writing & drawing, laser engraving, material handling, palletising, soft gripping, mobile AGV |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
Edu Kit or Advanced Kit?
Same MT4 arm. The Advanced Kit adds electric and electromagnetic grippers, a big metal servo gripper, an AI voice-control box, a dedicated controller and a carry case.
Can students still disassemble it?
Yes — the arm is identical and fully rebuildable.
