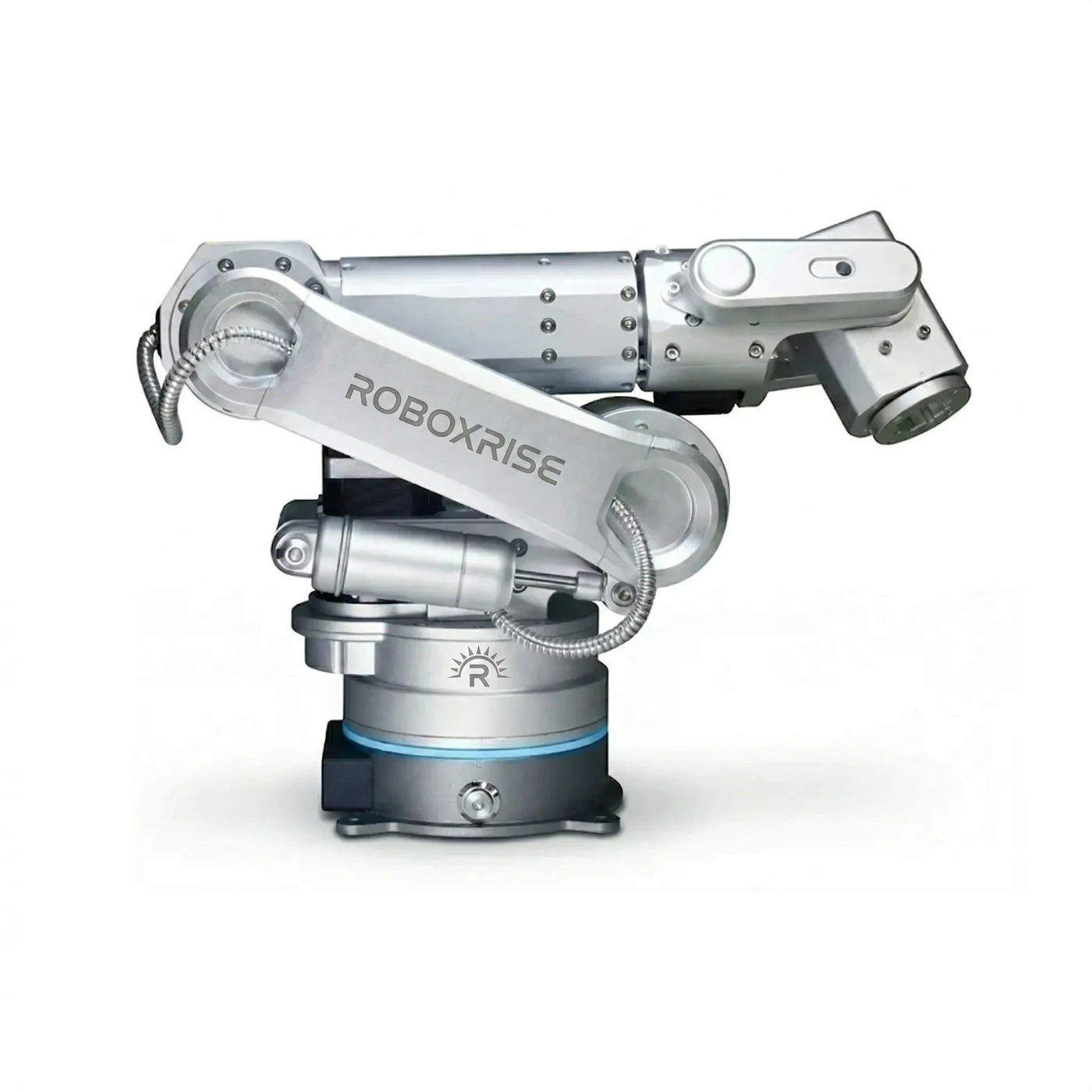

Haro380 Core Kit
0.05 mm, 6-axis compact industrial robot for desktop labs
What is it?
Haro380 is a high-precision six-axis desktop robot built for high-density, flexible, small-batch automation in education, research and light industry. Self-developed precision joints, closed-loop control and customisable LED indicators give true industrial performance in a desktop format.
It offers graphical programming for tablets and PCs, open APIs and industrial protocols, and connects with PLCs, machine vision and digital-twin platforms — ideal for robotics programming, simulation and smart-manufacturing education.
Who is it for?
Departments and programme levels this system is designed for.
- Mechatronics
- Robotics & Automation
- Mechanical
- Electrical & Electronics
- Production & Industrial
- AI & Data Science
What can students learn?
Learning outcomes covered by the curriculum.
- Industrial robot systems and coordinate frames
- DH parameters and motion control commands
- Graphical, teach-and-play and Python programming
- Material handling and palletising
- Path planning — arc and gantry trajectories
- Motion simulation with ROS and MATLAB
- Motion control with a microcontroller and a PLC
- Digital-twin simulation
- Robotic vision with OpenCV and YOLO (with vision suite)
What is included?
Hardware in the box, plus what RoboxRise delivers with it.

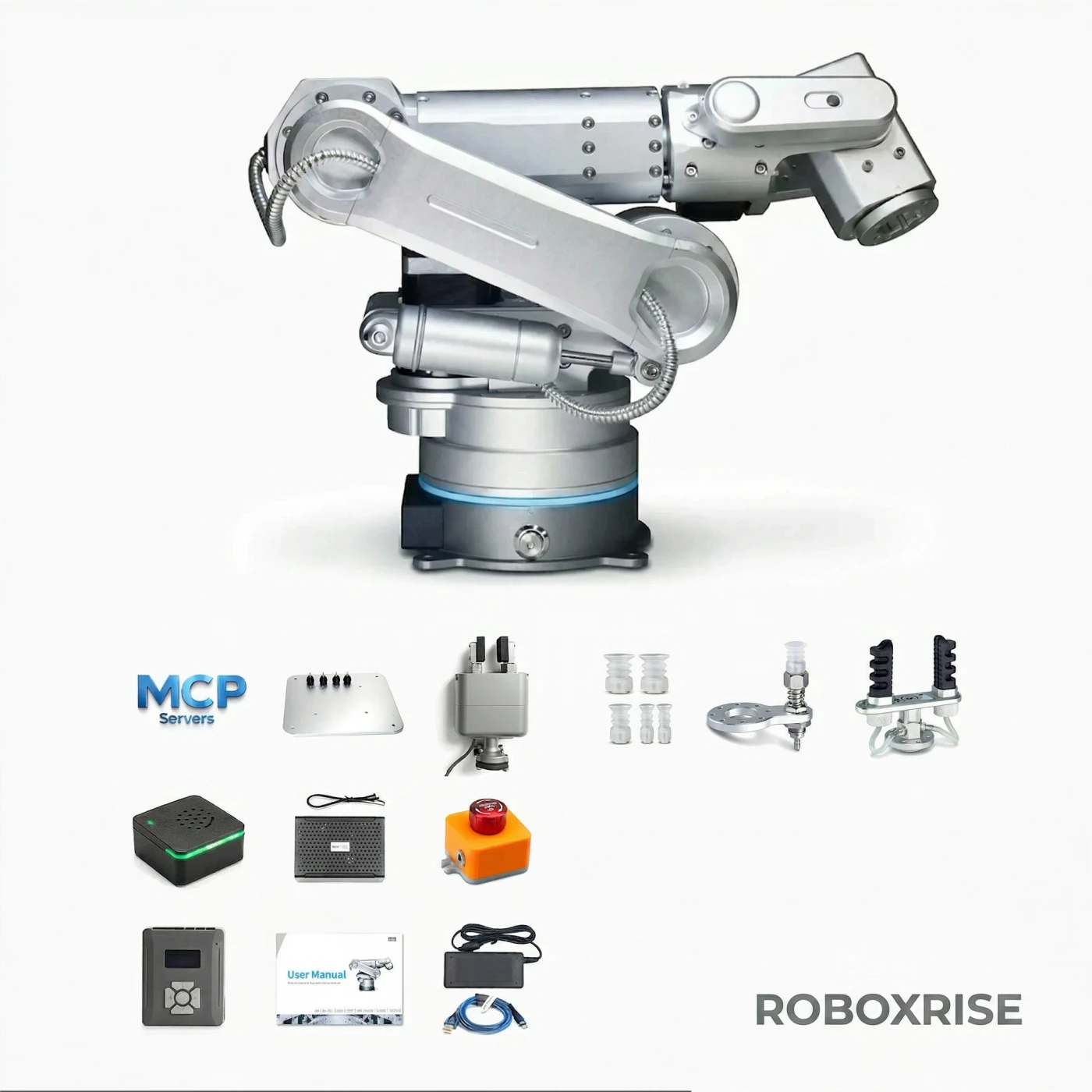

In the box
- HARO380 Robotic Arm × 1
- 2-Finger Soft Gripper (Adjustable Light-Industrial) × 1
- Electric Gripper (Adjustable Stroke and Force) × 1
- Suction Cup (with 3 Cup Head Pairs S/M/L) × 1
- AI Assistant Voice Control Box × 1
- Pneumatic Box × 1
- Multifunctional Box × 1
- MCP Servers × 1
- Emergency Stop Switch × 1
- Aluminium Base with Thumb Screws × 1
- Calibration Board & Blocks × 1
- Robotic Arm Firmware Upgrade Cable × 1
- UART Programming Cable × 1
- USB & IDC Cable × 1
- Power Supply × 1
- Handbook × 1
- Safety Carry Case × 1
Delivered by RoboxRise
- Experiment manual, sample code and demonstration videos
- Faculty training (train-the-trainer)
- Installation and commissioning at your institution
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
15 of the lab experiments students perform on this system.
- Industrial robot system set-up
- Robot coordinate systems
- DH parameters
- Motion control commands
- Graphical and teach programming
- Python programming
- Material handling and palletising
- Writing and drawing
- Motion simulation with ROS
- Motion control with a microcontroller (AVR)
- Motion control with a PLC
- Arc and gantry path planning
- Digital-twin simulation
- Hand–eye calibrationwith OpenCV vision suite
- YOLO screw and nut sortingwith OpenCV vision suite
Grow your lab
Compatible systems that connect directly to this one.
OpenCV Advanced Vision Suite
Linux vision platform with YOLOv5, OpenCV and a university textbook
Conveyor Belt Set
Modular conveyor for Mirobot, MT4 and Haro380
Sliding Rail Set
Linear 7th axis that extends the robot's working envelope
Haro380 Advanced Kit
Haro380 with PLC, vision and voice-control extensions
Technical specifications
| Axes | 6 (7th axis with optional Sliding Rail Set) |
|---|---|
| Repeatability | ±0.05 mm |
| Payload | 500 g (up to 1 kg under specific conditions) |
| Working radius | 380 mm |
| Net weight | 3.5 kg |
| Joints | Self-developed precision joints, closed-loop control |
| Communication | USB, Bluetooth, Wi-Fi, RS485; industrial protocols |
| Programming | Graphical (tablet & PC), Python, C++, open API |
| Supported platforms | AVR microcontroller, AI processors, PLC, ROS, MATLAB, Omniverse, TensorFlow, PyTorch, YOLOv5, OpenCV, OpenMV |
| Applications | Automotive, vacuum handling, mechanical and flexible gripping, PLC sorting, welding inspection, biopharma |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
Core Kit or Advanced Kit?
Both use the same Haro380 arm. The Advanced Kit adds a broader set of end-effectors and extensions such as PLC, vision and voice control. We will recommend the right one after understanding your syllabus.
Can Haro380 connect to our PLC trainer?
Yes. Haro380 supports industrial protocols and digital I/O for PLC integration.
Is it suitable for research?
Yes — ±0.05 mm repeatability, open APIs, ROS and MATLAB support and digital-twin compatibility make it suitable for PG and research work.
