Haro380 Advanced Kit
0.05 mm 6-axis compact industrial robot with the full gripper ecosystem
What is it?
The Haro380 Advanced Kit is a professional-grade 6-axis system for industrial simulation, advanced research and high-level engineering education. It supports PLC integration, ROS2, MATLAB and AI voice control.
It ships with the full Haro380 gripper ecosystem — soft-beak, 2-, 3- and 4-finger soft grippers, 2- and 4-finger suction tools, pneumatic parallel and electric grippers — plus an emergency stop, aluminium base, calibration board and safety carry case, for real pick-and-place, assembly and material-handling work.
Who is it for?
Departments and programme levels this system is designed for.
- Mechatronics
- Robotics & Automation
- Mechanical
- Electrical & Electronics
- Production & Industrial
- AI & Data Science
What can students learn?
Learning outcomes covered by the curriculum.
- Industrial robot systems and coordinate frames
- DH parameters and motion control commands
- Graphical, teach-and-play and Python programming
- Material handling and palletising
- Path planning — arc and gantry trajectories
- Motion simulation with ROS and MATLAB
- Motion control with a microcontroller and a PLC
- Digital-twin simulation
- Robotic vision with OpenCV and YOLO (with vision suite)
- Selecting grippers for different parts and materials
- Voice-commanded automation
What is included?
Hardware in the box, plus what RoboxRise delivers with it.

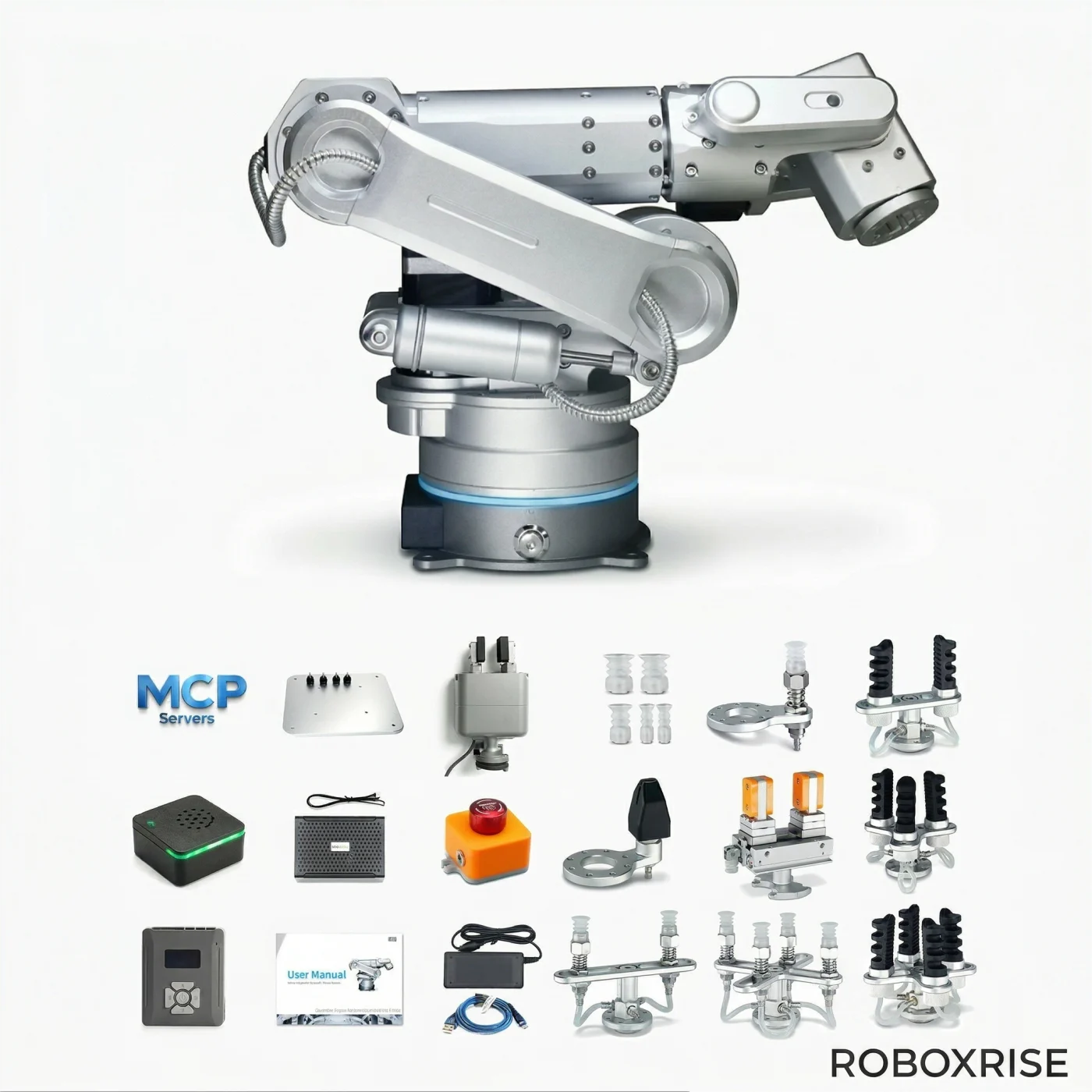

In the box
- HARO380 Robotic Arm × 1
- Soft-Beak Gripper (Light-Industrial) × 1
- 3-Finger Soft Gripper (Adjustable Light-Industrial) × 1
- 4-Finger Soft Gripper (Adjustable Light-Industrial) × 1
- 2-Finger Suction Cup (Adjustable, with 3 Cup Head Pairs S/M/L) × 1
- 4-Finger Suction Cup (Adjustable, with 3 Cup Head Pairs S/M/L) × 1
- Pneumatic Parallel Gripper × 1
- 2-Finger Soft Gripper (Adjustable Light-Industrial) × 1
- Electric Gripper (Adjustable Stroke and Force) × 1
- Suction Cup (with 3 Cup Head Pairs S/M/L) × 1
- AI Assistant Voice Control Box × 1
- Pneumatic Box × 1
- Multifunctional Box × 1
- MCP Servers × 1
- Emergency Stop Switch × 1
- Aluminum Base with Thumb Screws × 1
- Calibration Board & Blocks × 1
- Robotic Arm Firmware Upgrade Cable × 1
- UART Programming Cable × 1
- USB & IDC Cable × 1
- Power Supply × 1
- Handbook × 1
- Safety Carry Case × 1
Delivered by RoboxRise
- Experiment manual, sample code and demonstration videos
- Faculty training (train-the-trainer)
- Installation and commissioning at your institution
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
15 of the lab experiments students perform on this system.
- Industrial robot system set-up
- Robot coordinate systems
- DH parameters
- Motion control commands
- Graphical and teach programming
- Python programming
- Material handling and palletising
- Writing and drawing
- Motion simulation with ROS
- Motion control with a microcontroller (AVR)
- Motion control with a PLC
- Arc and gantry path planning
- Digital-twin simulation
- Hand–eye calibrationwith OpenCV vision suite
- YOLO screw and nut sortingwith OpenCV vision suite
Grow your lab
Compatible systems that connect directly to this one.
OpenCV Advanced Vision Suite
Linux vision platform with YOLOv5, OpenCV and a university textbook
Conveyor Belt Set
Modular conveyor for Mirobot, MT4 and Haro380
Sliding Rail Set
Linear 7th axis that extends the robot's working envelope
MiroMax Edge AI Kit
1 kg payload 6-axis arm with Raspberry Pi 5 edge-AI controller
Technical specifications
| Axes | 6 (7th axis with optional Sliding Rail Set) |
|---|---|
| Repeatability | ±0.05 mm |
| Payload | 500 g (up to 1 kg under specific conditions) |
| Working radius | 380 mm |
| Net weight | 3.5 kg |
| Joints | Self-developed precision joints, closed-loop control |
| Communication | USB, Bluetooth, Wi-Fi, RS485; industrial protocols |
| Programming | Graphical (tablet & PC), Python, C++, open API |
| Supported platforms | AVR microcontroller, AI processors, PLC, ROS, MATLAB, Omniverse, TensorFlow, PyTorch, YOLOv5, OpenCV, OpenMV |
| Applications | Automotive, vacuum handling, mechanical and flexible gripping, PLC sorting, welding inspection, biopharma |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
What does the Advanced Kit add over the Core Kit?
The complete gripper ecosystem (soft, suction, pneumatic and electric), an AI voice-control box, emergency stop, aluminium base, calibration board and blocks, and a safety carry case.
Can Haro380 connect to our PLC trainer?
Yes. Haro380 supports industrial protocols and digital I/O for PLC integration.
