Automobile Assembly Cell
Three-robot automotive assembly and welding workstation
What is it?

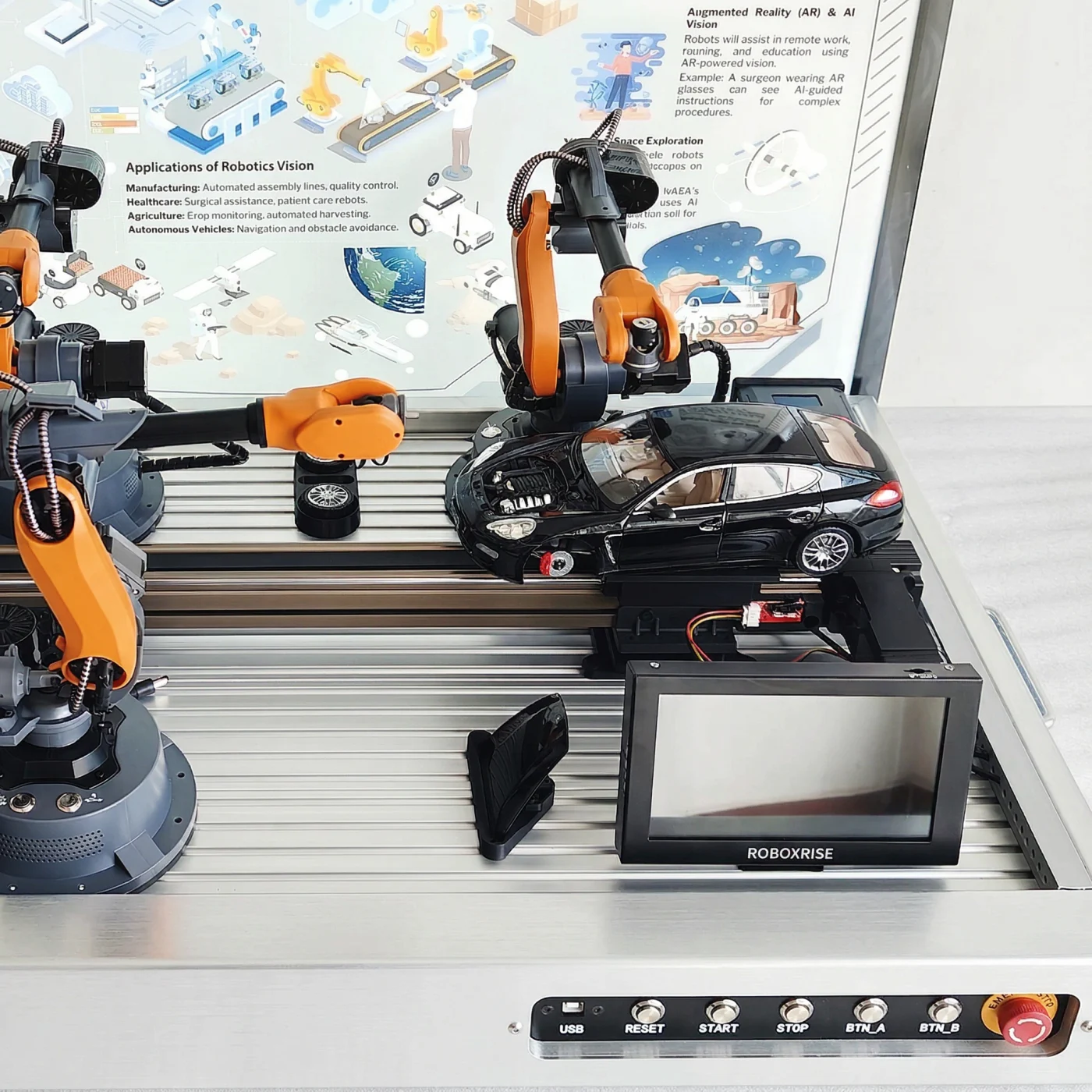

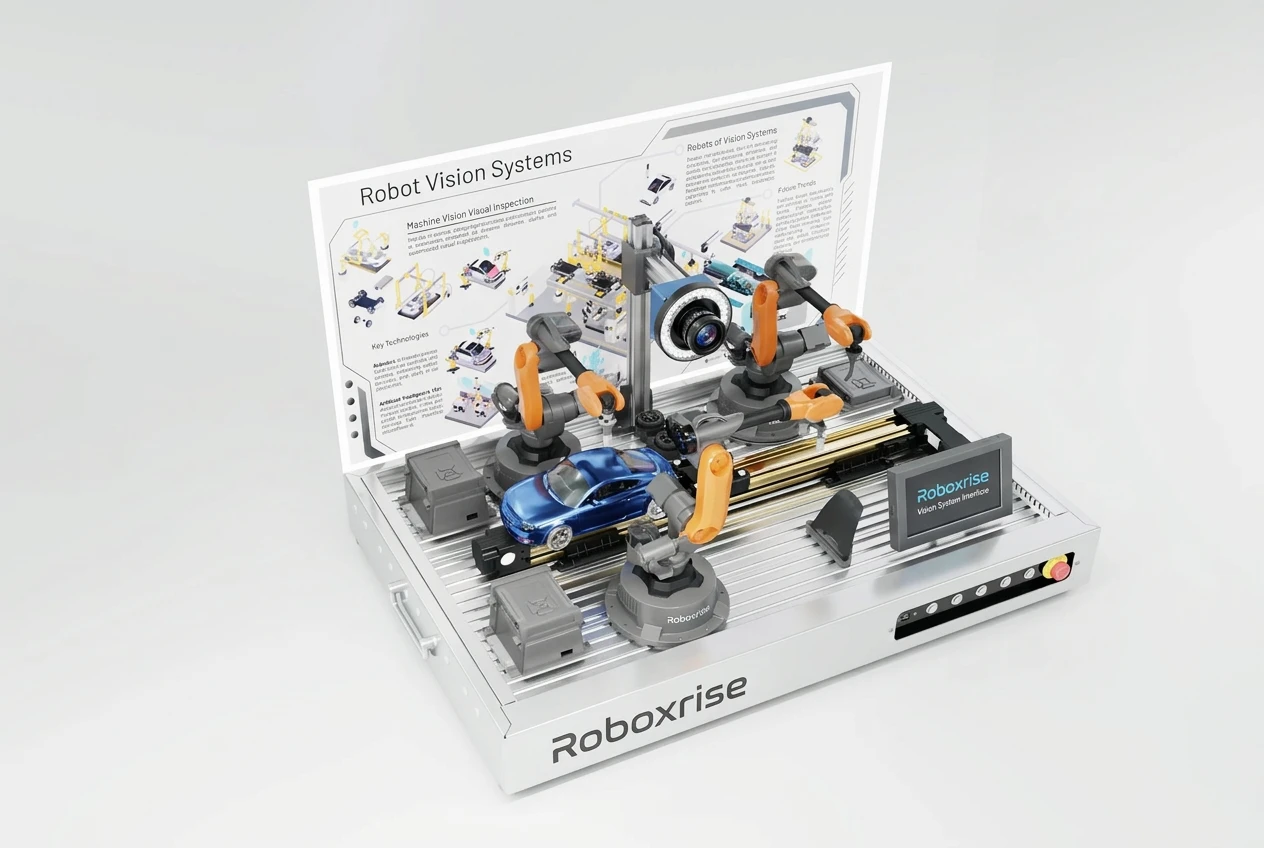

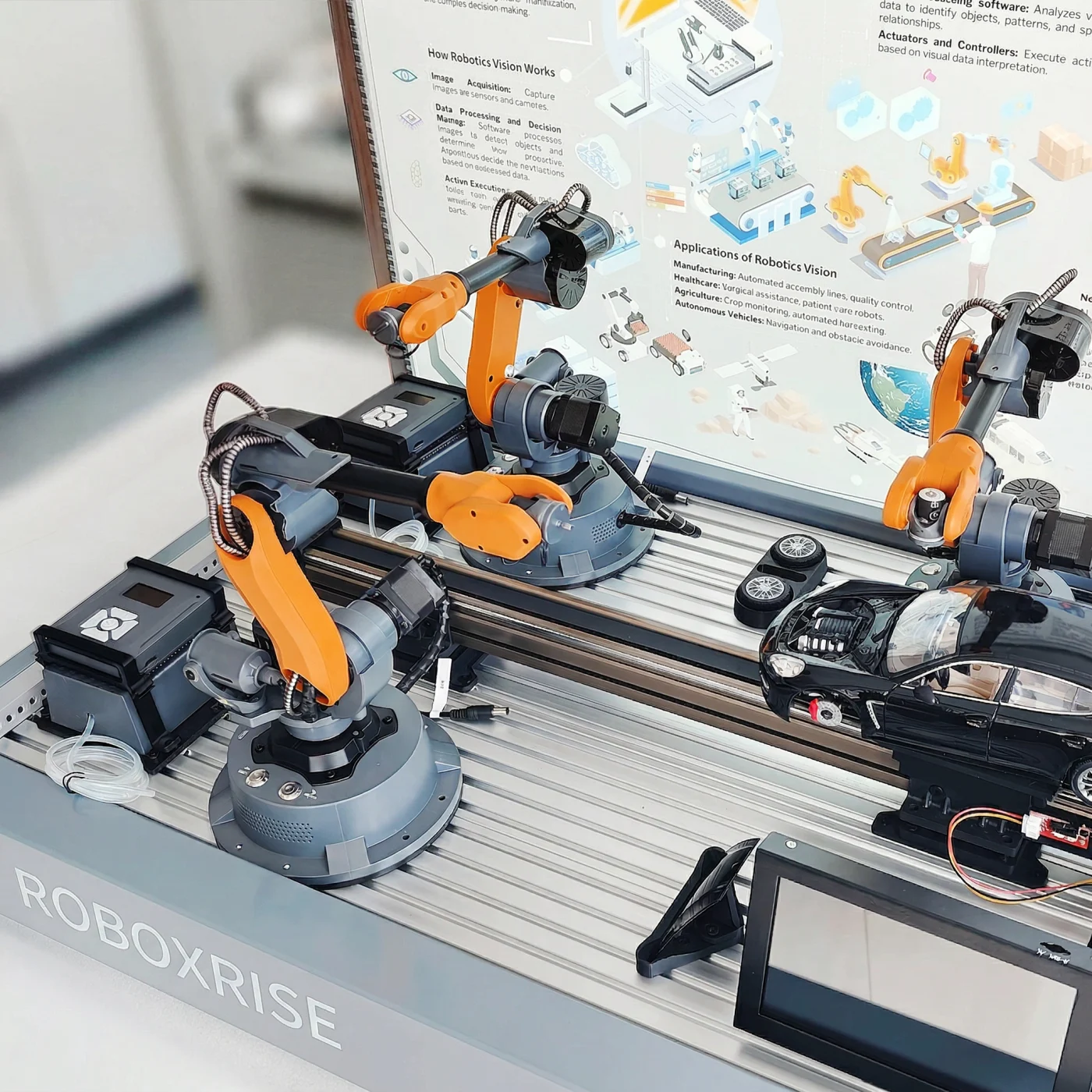

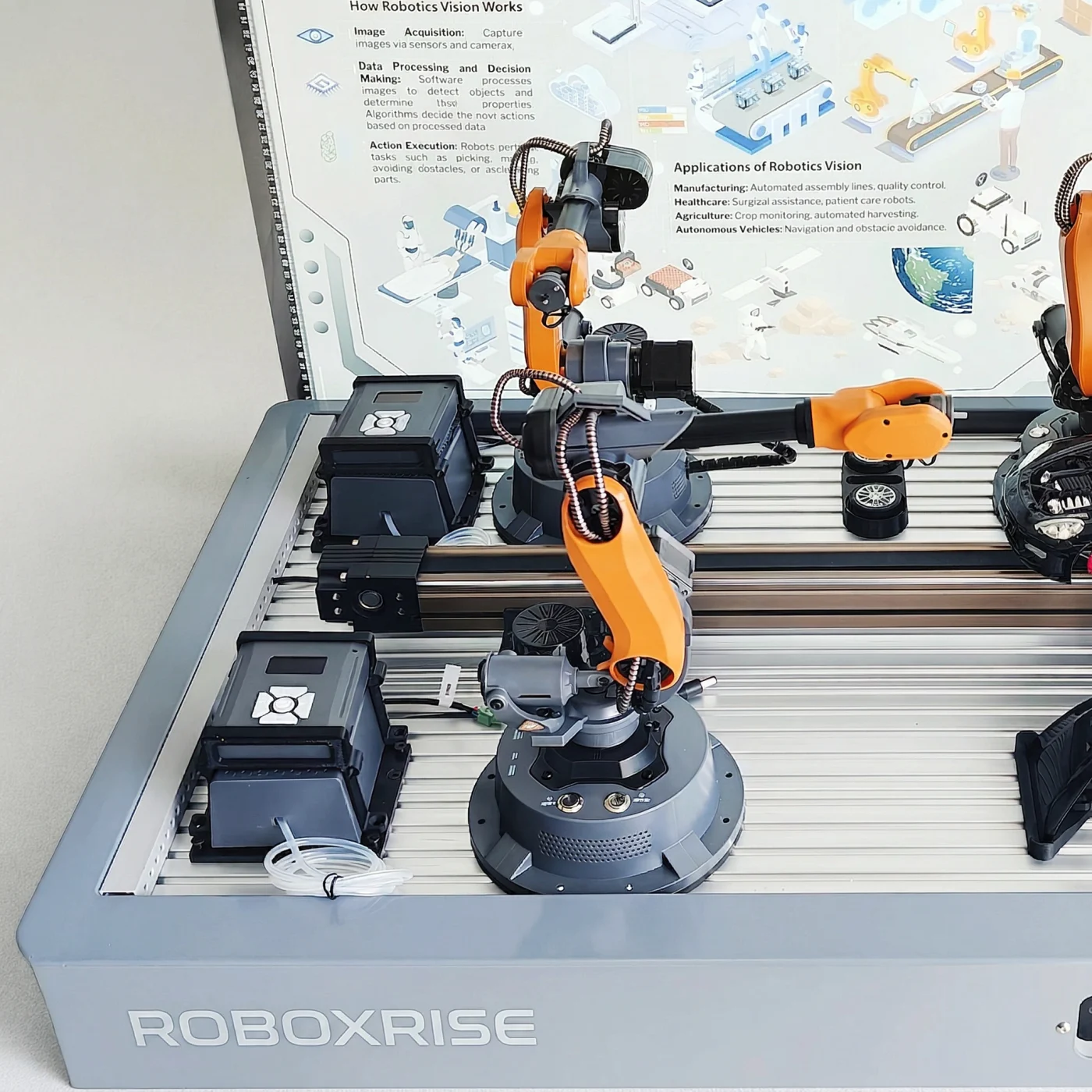

The Automobile Assembly Cell simulates key automotive processes — wheel assembly, hood assembly, welding and station switching. Three six-axis robots and a linear transfer unit carrying a car model show robots collaborating along an assembly line.
A medium smart base, touch-screen control and an LED infographic board (illumination plus visual knowledge display) make it a complete training and research station for mechatronics, robotics and intelligent manufacturing.
Who is it for?
Departments and programme levels this system is designed for.
- Mechanical
- Automobile
- Mechatronics
- Production & Industrial
- Robotics & Automation
What can students learn?
Learning outcomes covered by the curriculum.
- Automotive assembly sequence
- Multi-robot coordination and hand-offs
- Linear-axis transfer between stations
- Welding-path simulation
- Station switching logic
- HMI control and status display
What is included?
Hardware in the box, plus what RoboxRise delivers with it.
In the box
- ROBOXRISE Mirobot (Education Kit X 2 & Professional Kit X 1)
- Production Cell Smart Base - M × 1
- Sliding rail set × 1
- Car Model × 1
- Main control box (based on Arduino) × 1
- Accessories and welding simulation module × 1
- Touchscreen module × 1
- Document and educational resource kit (experiment handbook for educators, source code, installation handbook, PPT quick start guide, demonstration videos) × 1
Delivered by RoboxRise
- Digital resource kit — educator experiment handbook, source code, installation handbook, PPT quick-start, demo videos
- Installation and commissioning at your institution
- Faculty training (train-the-trainer)
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
9 of the lab experiments students perform on this system.
- Cell start-up and safety
- Car-body transfer on the sliding rail
- Wheel assembly station
- Station switching
- Welding-path simulation
- Hood assembly
- Three-robot sequence programming
- HMI-controlled production run
- Cycle-time measurement
Grow your lab
Compatible systems that connect directly to this one.
Technical specifications
| Robots | Mirobot Education Kit × 2 and Professional Kit × 1 |
|---|---|
| Base | Smart Base (M): 880 × 500 × 80 mm, aluminium-alloy panel on a sheet-metal frame, built-in 220 V → 12 V power module |
| Front panel | Emergency stop, restart, power switch and customisable function buttons |
| Transfer | RoboxRise Sliding Rail Set with car model |
| Process modules | Welding simulation module and assembly accessories |
| Control | Arduino-based main control box, touch-screen module, LED infographic board |
| Model | WL-PL-PRO1-Aa-Tec3 |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
Is institutional pricing available?
Yes. We provide a formal quotation based on configuration and quantity, including warranty, installation and training terms.
Can this integrate with our curriculum or existing lab hardware?
Most systems support open APIs and standard robotics stacks such as ROS / ROS2 and MATLAB. Share your requirements and our engineers will advise on integration.
Can we see a demonstration?
Yes — book a meeting for a live demonstration online, at your institution or at our Indore facility.
