AI Automatic Sorting Cell
Two-robot vision sorting workstation — food, pharma and industrial parts
What is it?
The AI Automatic Sorting Cell replicates one of the most common uses of AI in manufacturing: parts arrive on a conveyor, are identified by machine vision and sorted by robots into colour-coded bins — as in food, pharmaceutical and industrial-part sorting.

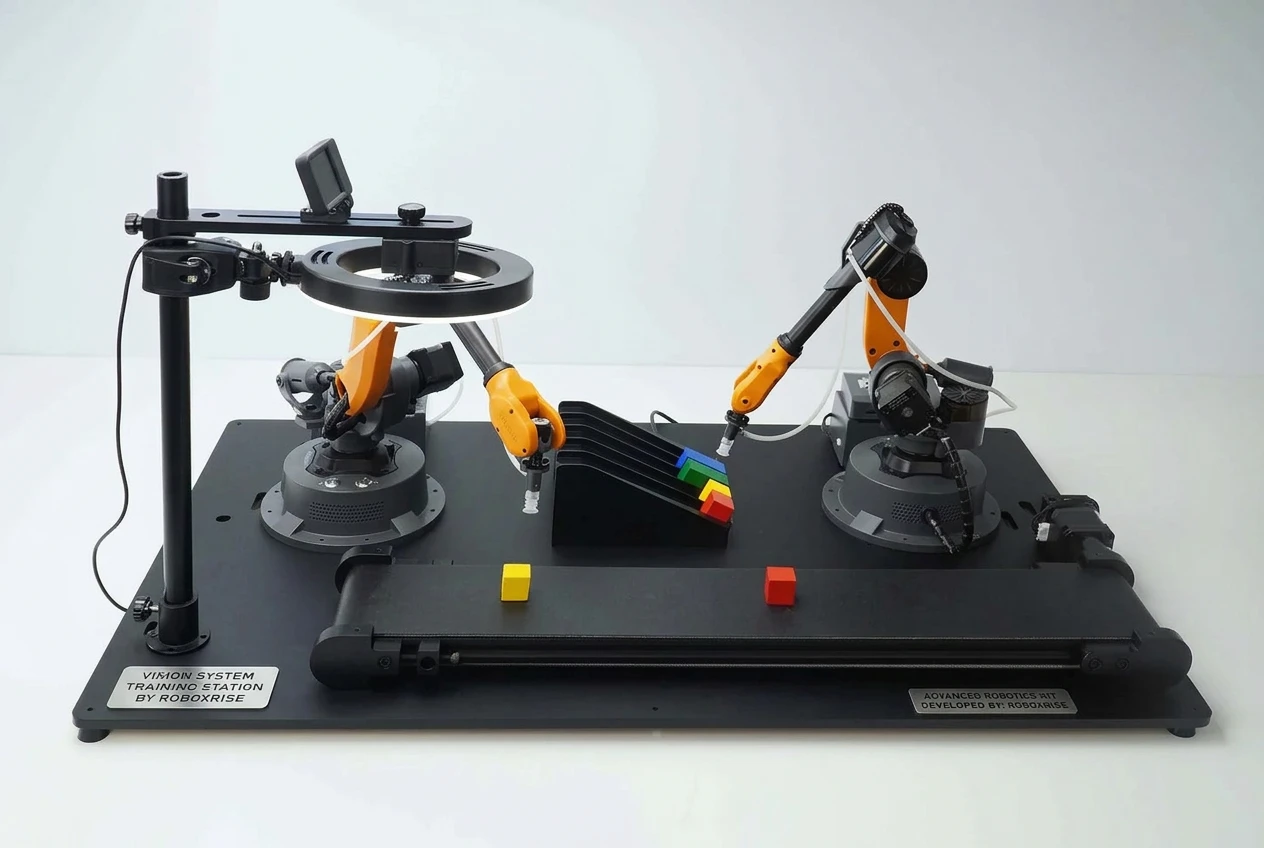

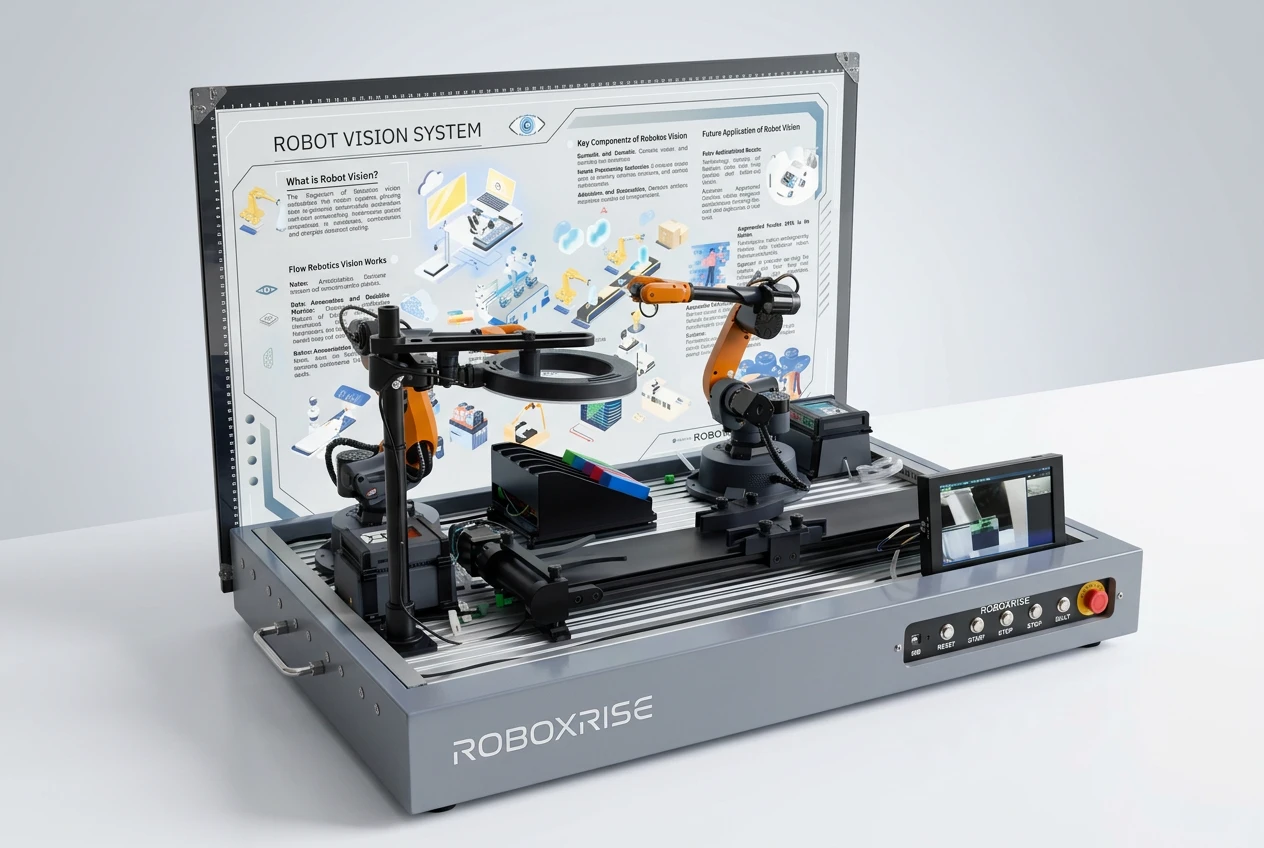

Two Mirobot arms, an AI Vision Set, a conveyor, an Arduino control box and a touch-screen HMI sit on a medium smart base with emergency stop. Students explore single-arm and collaborative sorting, process analysis and optimisation.
Who is it for?
Departments and programme levels this system is designed for.
- Mechatronics
- Robotics & Automation
- AI & Data Science
- ECE
- Mechanical
- Production
What can students learn?
Learning outcomes covered by the curriculum.
- Industrial automation workflow
- Robot loading and unloading
- Conveyor transfer and sensor triggering
- Vision recognition and classification
- Robot sorting algorithms
- Two-robot coordination
- HMI and control-box programming
- Process analysis and optimisation
What is included?
Hardware in the box, plus what RoboxRise delivers with it.
In the box
- ROBOXRISE Mirobot (Education Kit X 1 & Professional Kit X 1)
- Production Cell Smart Base - M × 1
- Conveyor belt × 1
- AI Vision Set × 1
- Color block accessories (including color sorting boxes and color blocks) × 1
- Main control box (based on Arduino) × 1
- Touchscreen module × 1
- Document and educational resource kit (experiment handbook for educators, source code, installation handbook, PPT quick start guide, demonstration videos) × 1
Delivered by RoboxRise
- Digital resource kit — educator experiment handbook, source code, installation handbook, PPT quick-start, demo videos
- Installation and commissioning at your institution
- Faculty training (train-the-trainer)
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
11 of the lab experiments students perform on this system.
- Cell start-up, safety and E-stop
- Robot loading onto the conveyor
- Conveyor transfer with sensor trigger
- Vision calibration
- Colour recognition
- Robot pick from a vision position
- Sorting into colour bins
- Robot unloading
- Two-arm collaborative sorting
- HMI screen programming
- Cycle-time measurement and optimisation
Grow your lab
Compatible systems that connect directly to this one.
OpenCV Advanced Vision Suite
Linux vision platform with YOLOv5, OpenCV and a university textbook
Logistic Warehouse Cell
Two-robot loading, palletising and storage workflow
Engraved Souvenirs Manufacturing Line
Laser-engraving smart factory with vision inspection
AI Vision Set
Plug-in AI camera for colour, shape and object recognition
Technical specifications
| Robots | Mirobot Education Kit × 1 and Professional Kit × 1 |
|---|---|
| Base | Smart Base (M): 880 × 500 × 80 mm, aluminium-alloy panel on a sheet-metal frame, built-in 220 V → 12 V power module |
| Front panel | Emergency stop, restart, power switch and customisable function buttons |
| Vision | AI Vision Set — 4 MP; face, object, shape recognition; UART / RS485 |
| Conveyor | RoboxRise Conveyor Belt Set |
| Control | Arduino-based main control box, touch-screen module, LED infographic board |
| Model | WL-PL-PRO1-AiGS-RGB3 |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
Is institutional pricing available?
Yes. We provide a formal quotation based on configuration and quantity, including warranty, installation and training terms.
Can this integrate with our curriculum or existing lab hardware?
Most systems support open APIs and standard robotics stacks such as ROS / ROS2 and MATLAB. Share your requirements and our engineers will advise on integration.
Can we see a demonstration?
Yes — book a meeting for a live demonstration online, at your institution or at our Indore facility.
