Engraved Souvenirs Manufacturing Line
Laser-engraving smart factory with vision inspection and packaging
What is it?

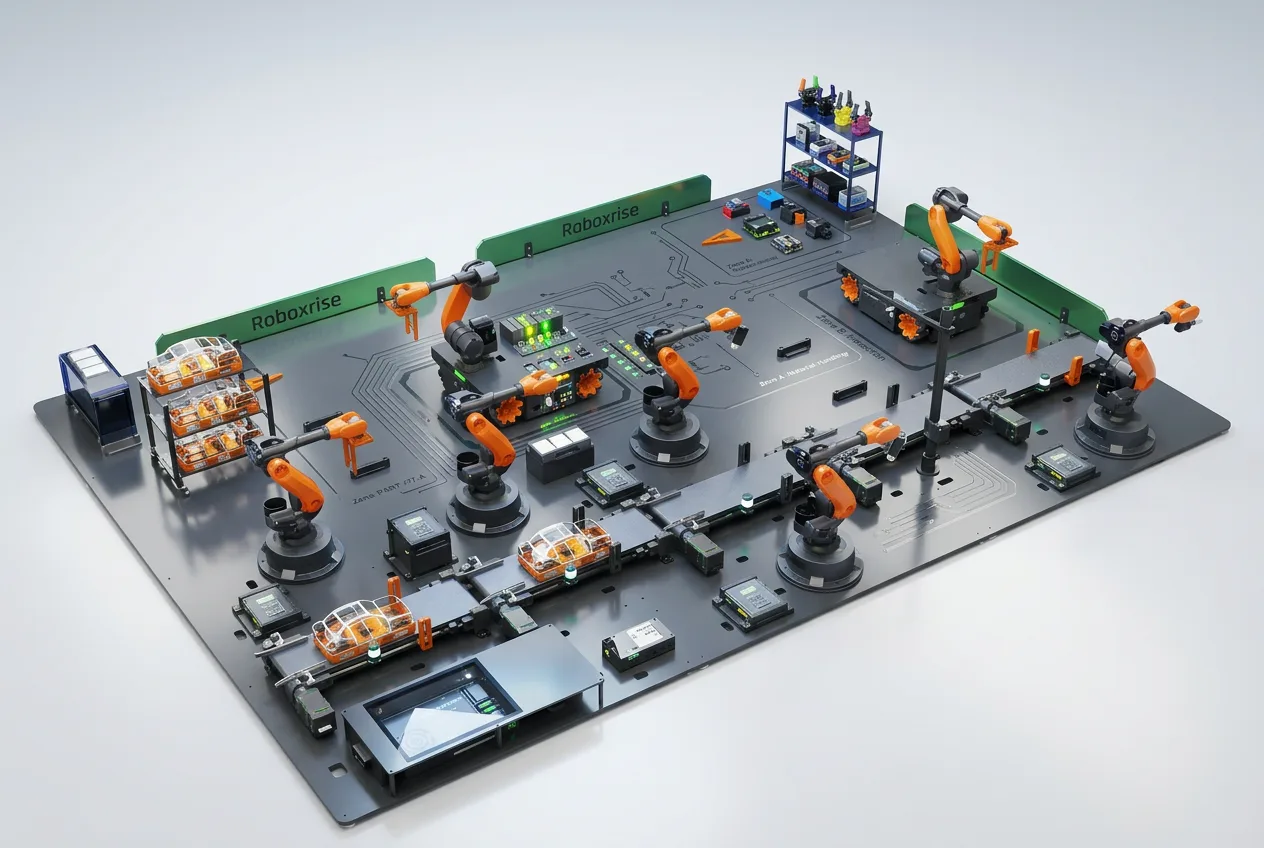

A compact, modular smart factory scaled down from real industrial lines. Material is loaded, handled by robots, laser-engraved, transferred, visually inspected, packaged and stored — producing real bookmarks, keychains, nameplates, chess pieces and seals.
Four Mirobots and an MT4 work with a conveyor, an OpenCV vision set, a laser engraver, auto-packaging and a warehousing unit, coordinated by an i5 control PC with a touch screen, Studio software and digital-twin integration — all in a 1700 × 600 mm footprint.
Who is it for?
Departments and programme levels this system is designed for.
- Mechatronics
- Production & Industrial
- Mechanical
- CSE / AI & Data Science
- ECE
- Robotics & Automation
What can students learn?
Learning outcomes covered by the curriculum.
- End-to-end production flow
- Robot programming at each station
- Laser engraving process control
- Machine-vision defect inspection
- Packaging and warehousing automation
- Line integration and sequencing
- Digital-twin simulation
- Graphical and Python programming
What is included?
Hardware in the box, plus what RoboxRise delivers with it.
In the box
- ROBOXRISE Mirobot Education Kit × 4
- Bottom plate × 1
- ROBOXRISE MT4 Edu Kit 4-axis robotic arm × 1
- Material Feeding Set × 1
- Conveyor belt × 1
- OpenCV Vision Set × 1
- Auto Packaging Set × 1
- Main control box × 1
- Accessories (Label boxes, label materials) × 1
- Laser engraving machine × 1
- Warehousing Unit × 1
- Touchscreen module × 1
Delivered by RoboxRise
- Digital resource kit — educator experiment handbook, source code, installation handbook, PPT quick-start, demo videos
- Installation and commissioning at your institution
- Faculty training (train-the-trainer)
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
12 of the lab experiments students perform on this system.
- Material loading
- Robot handling to the engraver
- Laser engraving parameters
- Robot transfer
- Visual inspection and defect rejection
- Package loading
- Souvenir packaging
- Goods storage
- Station-by-station program integration
- Full production run
- Digital-twin simulation of the line
- Changeover to a new product
Grow your lab
Compatible systems that connect directly to this one.
Automotive Manufacturing Line
Seven robots and two AGVs — handling to polishing
AI Automatic Sorting Cell
Vision-guided sorting on a conveyor — food, pharma and parts
OpenCV Advanced Vision Suite
Linux vision platform with YOLOv5, OpenCV and a university textbook
World Builder Set
Modular XFactory floor expansion pack
Technical specifications
| Robots | Mirobot × 4, MT4 × 1 |
|---|---|
| Footprint | 1700 × 600 mm |
| Engraving unit | 2 W laser, ±0.001 mm accuracy, 9500 mm/s, 70 × 70 mm area; metal, wood, leather, plastic |
| Discharge unit | Stepper, 100 mm travel, 80 mm/s, ±0.03 mm; 12 kg horizontal / 5 kg vertical |
| Vision | 5 MP colour camera, 2952 × 1944, auto exposure / white balance / gain |
| Control & display | i5 CPU, 16 GB RAM, 10.1" touch screen, Studio software, graphical + Python, digital twin |
| Modules | Material feeding set, conveyor, OpenCV vision set, auto-packaging set, warehousing unit |
| Model | WL-PL-CM-CD24 |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
Is institutional pricing available?
Yes. We provide a formal quotation based on configuration and quantity, including warranty, installation and training terms.
Can this integrate with our curriculum or existing lab hardware?
Most systems support open APIs and standard robotics stacks such as ROS / ROS2 and MATLAB. Share your requirements and our engineers will advise on integration.
Can we see a demonstration?
Yes — book a meeting for a live demonstration online, at your institution or at our Indore facility.
