March X Pro LiDAR Quadruped
12-axis robot dog with LiDAR and RGB-D for autonomous navigation research
What is it?
March X Pro is a research-grade quadruped for autonomous navigation, Sim2Real policy transfer and legged-locomotion research. Twelve active joints give agile, stable movement across varied terrain.
LiDAR and RGB-D depth sensing build detailed 3D maps for precise navigation and object recognition. An NVIDIA Jetson Xavier NX computer on Ubuntu, an open SDK (Python, C++, ROS) and an interface extension module support custom sensors and payloads.
Who is it for?
Departments and programme levels this system is designed for.
- AI & Data Science
- Robotics & Automation
- CSE
- ECE
- Mechatronics
What can students learn?
Learning outcomes covered by the curriculum.
- Legged-robot kinematics
- LiDAR SLAM and mapping
- Autonomous path planning and obstacle avoidance
- LiDAR + RGB-D sensor fusion
- Object tracking and following
- Reinforcement learning and Sim2Real
What is included?
Hardware in the box, plus what RoboxRise delivers with it.

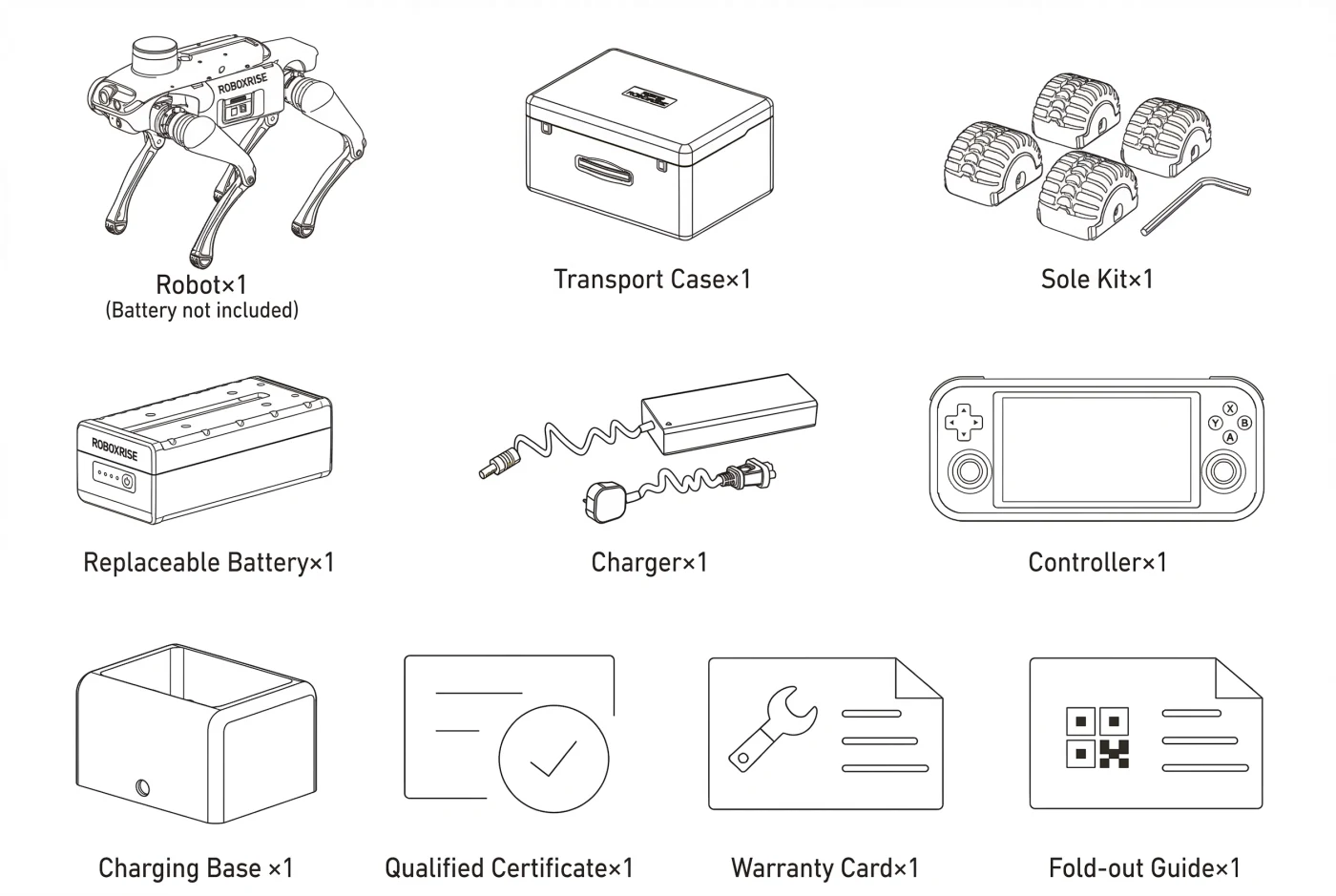

In the box
- Robot × 1
- Transport Case × 1
- Sole Kit × 1
- Replaceable Battery × 1
- Charger × 1
- Charging Base × 1
- Interface Extension Module × 1
- Depth Camera × 1
- LiDAR × 1
- User Manual × 1
Delivered by RoboxRise
- Experiment manual, sample code and demonstration videos
- Faculty training (train-the-trainer)
- Installation and commissioning at your institution
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
10 of the lab experiments students perform on this system.
- Start-up, remote control and gaits
- LiDAR scanning
- 2D / 3D SLAM mapping
- Localisation in a known map
- Autonomous path planning
- Obstacle detection and avoidance
- Object tracking and person following
- Stair and slope negotiation
- Custom sensor via interface module
- Sim2Real locomotion policy
Grow your lab
Compatible systems that connect directly to this one.
BRAVE Biped Robot
Multi-modal bipedal robot with RGB-D vision for Sim2Real research
AGV Rover Set
Mobile base for combined arm-and-AGV experiments
MiroMax Edge AI Kit
1 kg payload 6-axis arm with Raspberry Pi 5 edge-AI controller
OpenCV Advanced Vision Suite
Linux vision platform with YOLOv5, OpenCV and a university textbook
Technical specifications
| Type | Quadruped, 12 active joints |
|---|---|
| Dimensions | 610 × 370 × 503 mm |
| Net weight | 13.7 kg |
| Speed | 0–2.5 m/s |
| Terrain | 40° climb, 15 cm step |
| Battery | Replaceable, ~1.5 h; charging base included |
| Sensors | LiDAR, RGB-D depth camera |
| Computer | NVIDIA Jetson Xavier NX, Ubuntu |
| Software | Open SDK — Python, C++, ROS; reinforcement-learning frameworks |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
