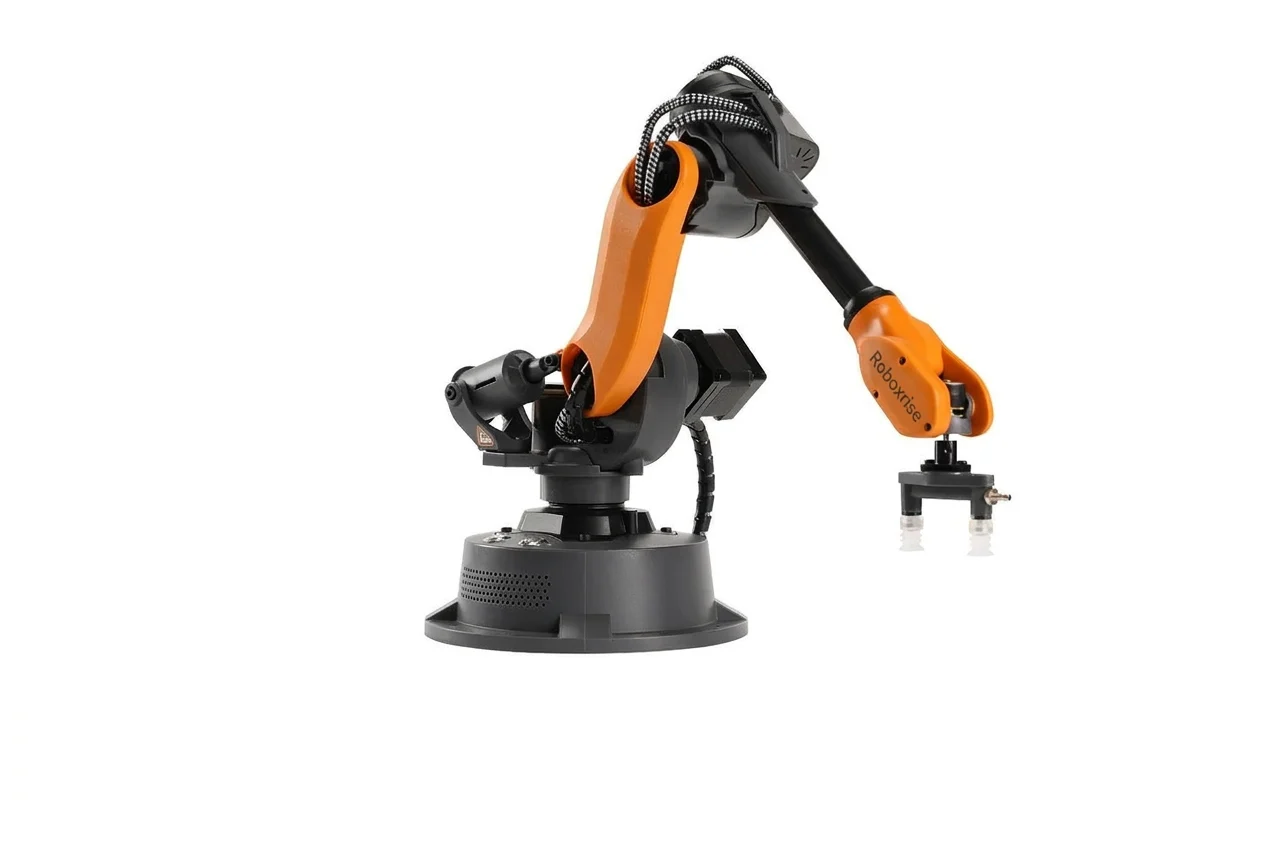

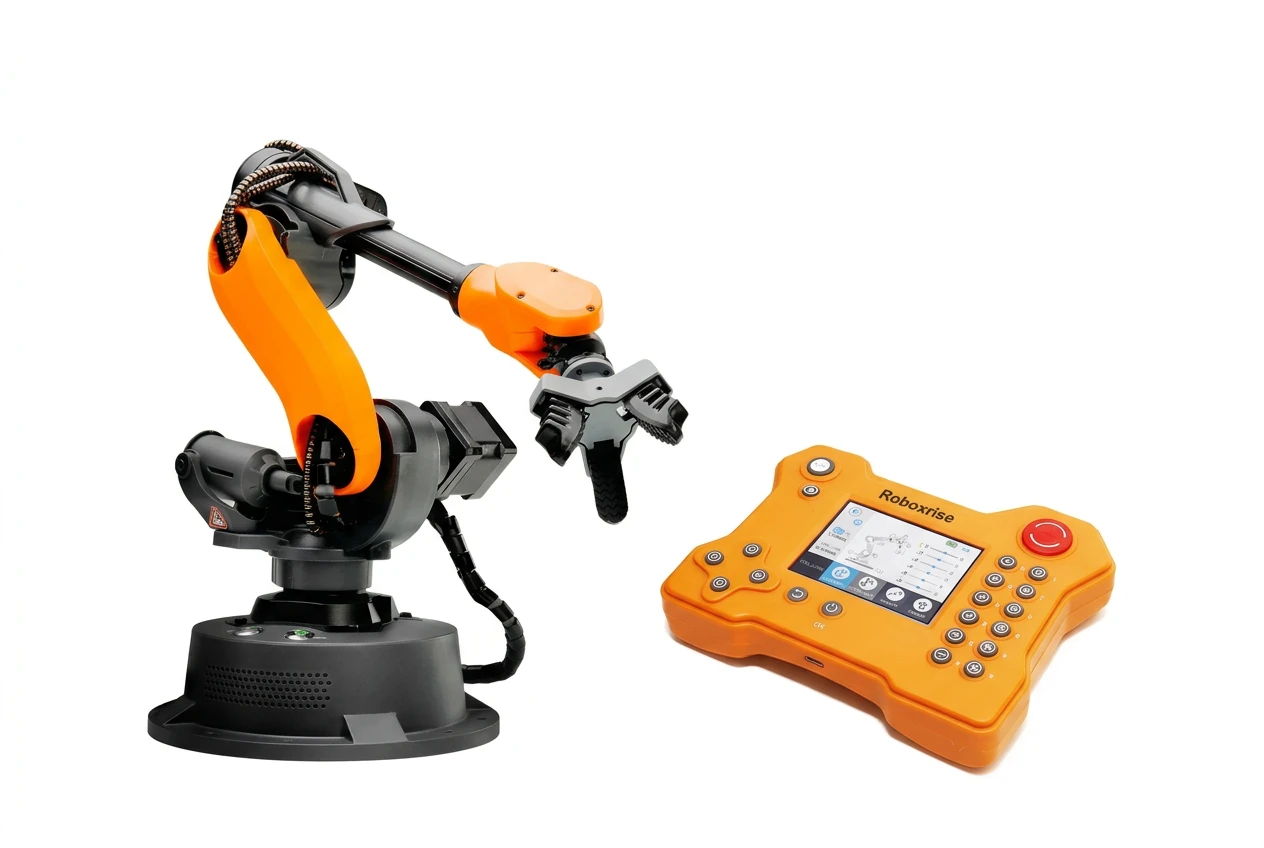

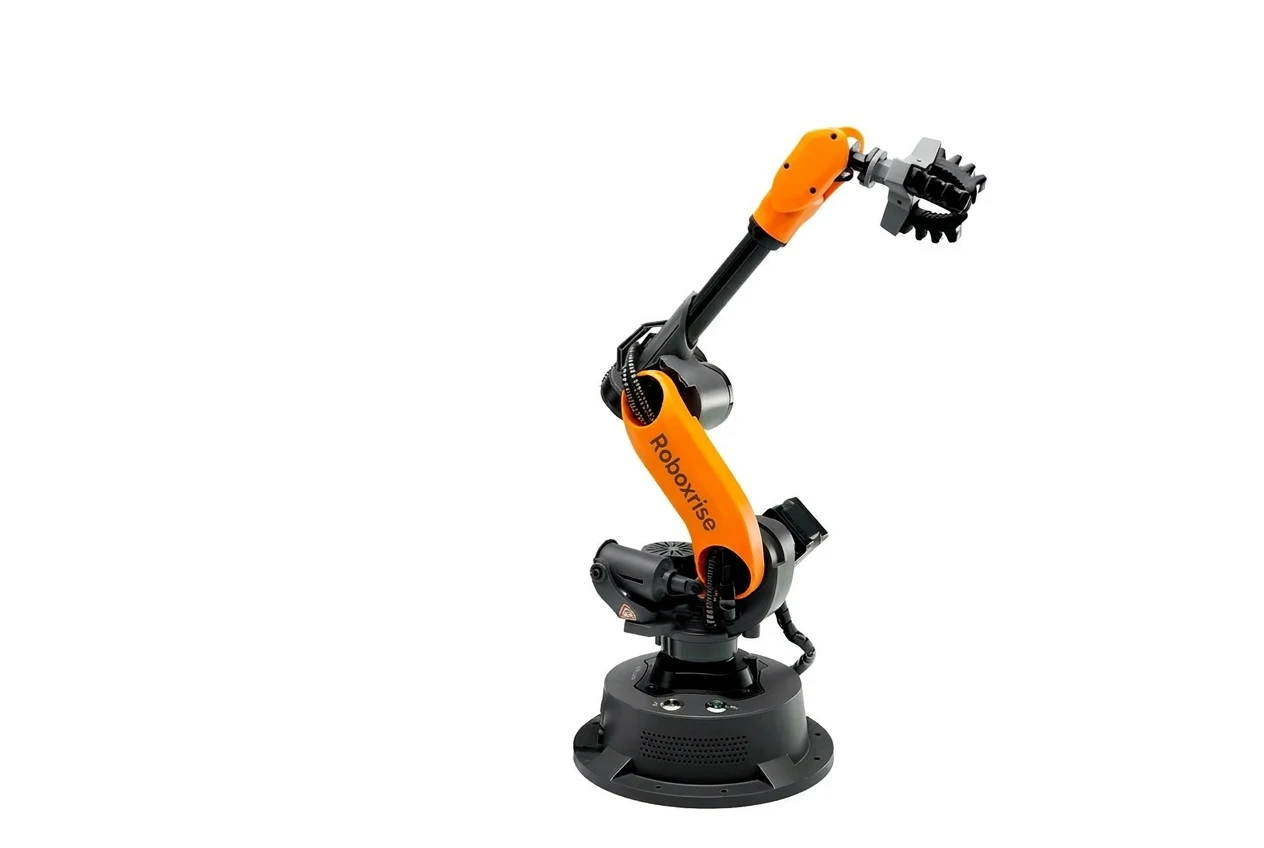

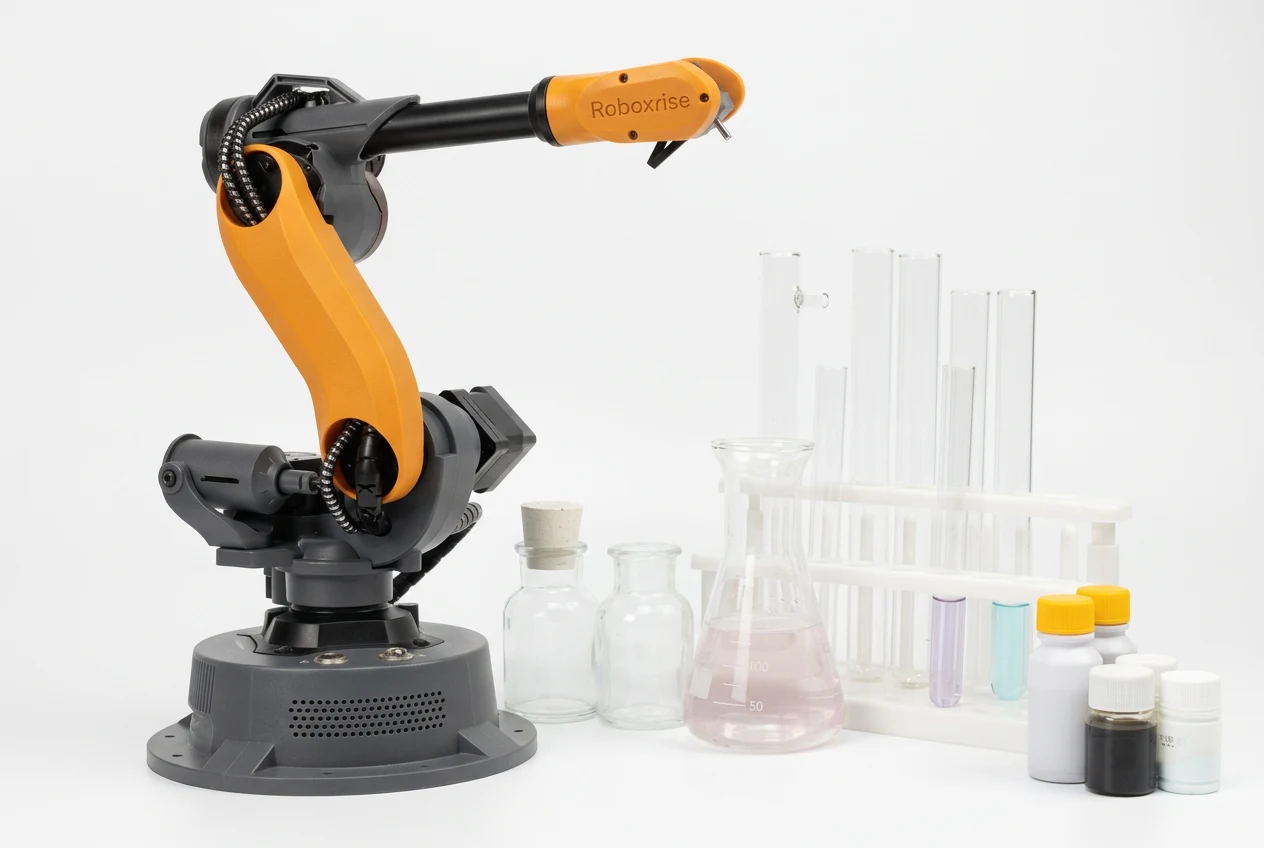

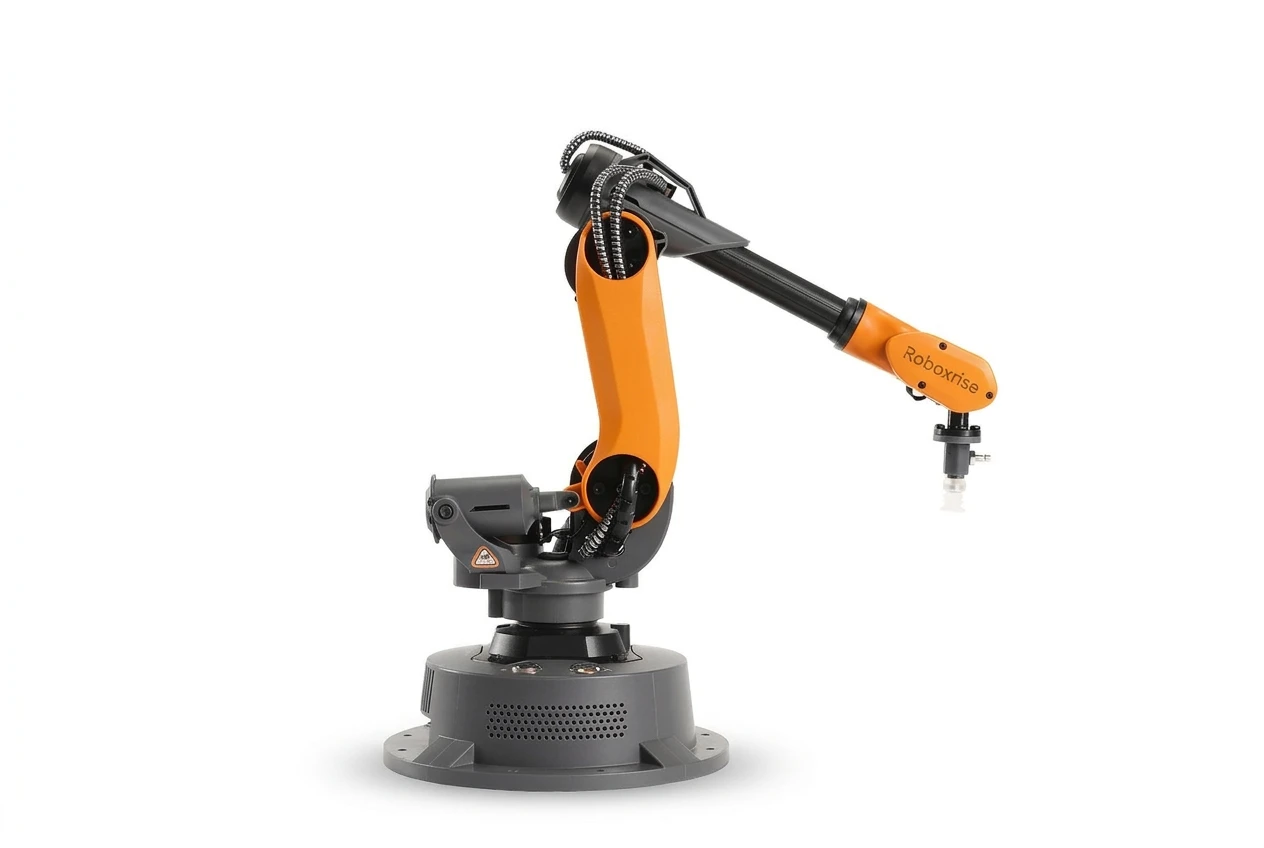

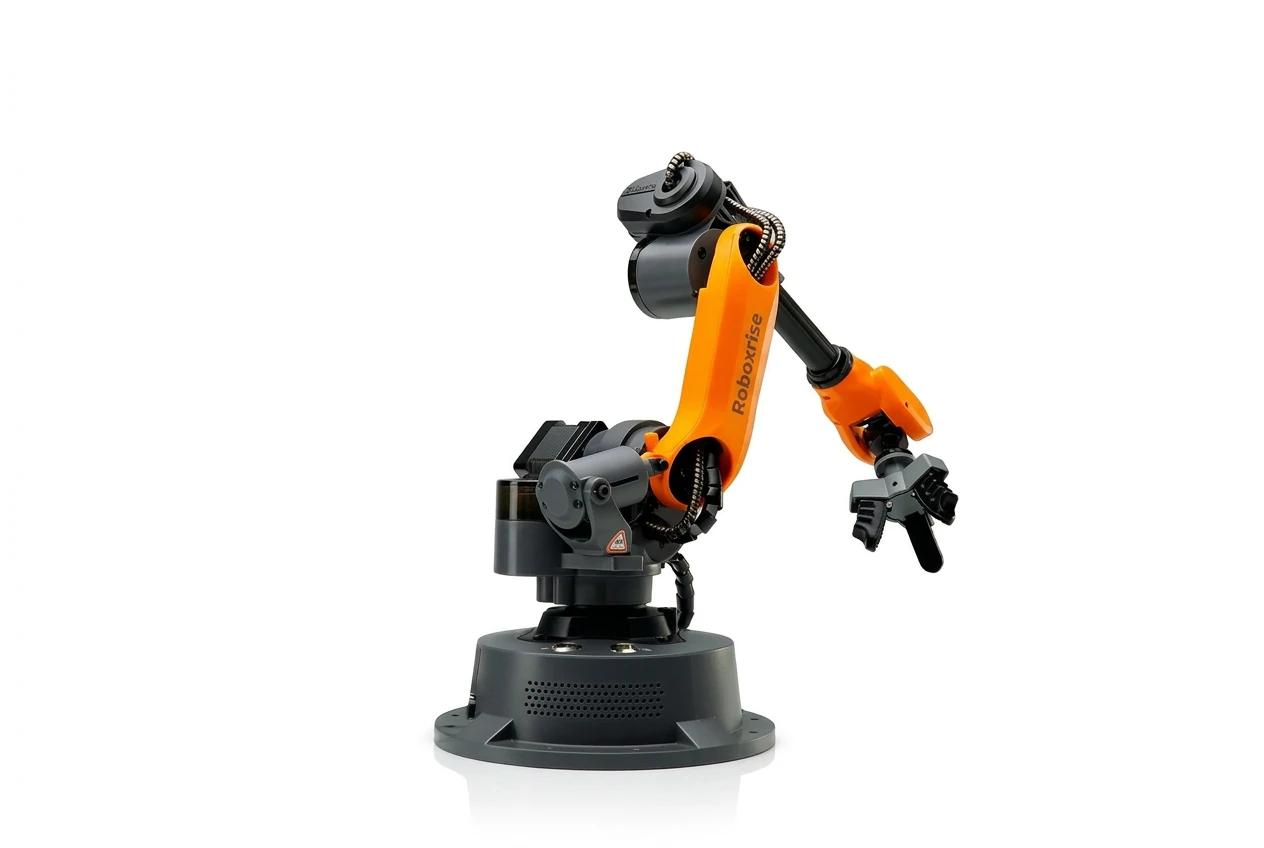

Mirobot Professional Kit
6-axis desktop industrial robot with a dedicated controller for structured lab sessions
What is it?
The Mirobot Professional Kit is a fully equipped 6-axis platform for simulation-based teaching and applied robotics training. It supports ROS and MATLAB for research workflows while staying approachable for undergraduate and polytechnic coursework.
Compared with the Education Kit it adds a dedicated robot controller, so programs can run stand-alone and the arm can be integrated with conveyors, sensors and production cells. With the full pneumatic tool set and the official programming textbook, it covers kinematics, trajectory planning and end-effector programming end to end.
Who is it for?
Departments and programme levels this system is designed for.
- Mechanical
- Mechatronics
- Robotics & Automation
- Electrical & Electronics
- ECE
- CSE
- AI & Data Science
- Production & Industrial
What can students learn?
Learning outcomes covered by the curriculum.
- Robot coordinate systems and frames
- DH parameters, forward and inverse kinematics
- Motion commands and trajectory planning
- Teach-and-play and graphical (Blockly) programming
- Python, C++ and G-code programming via open API
- ROS simulation — URDF, RViz, MoveIt! and Gazebo
- MATLAB robot simulation
- Pick-and-place, palletising and material handling
- Pneumatic and soft-gripper end-effectors
- Robot I/O, sensors and RS485 communication
- Conveyor integration and sorting (with add-on)
- Machine vision and AI sorting (with AI Vision Set)
- Robot control from a microcontroller and a PLC

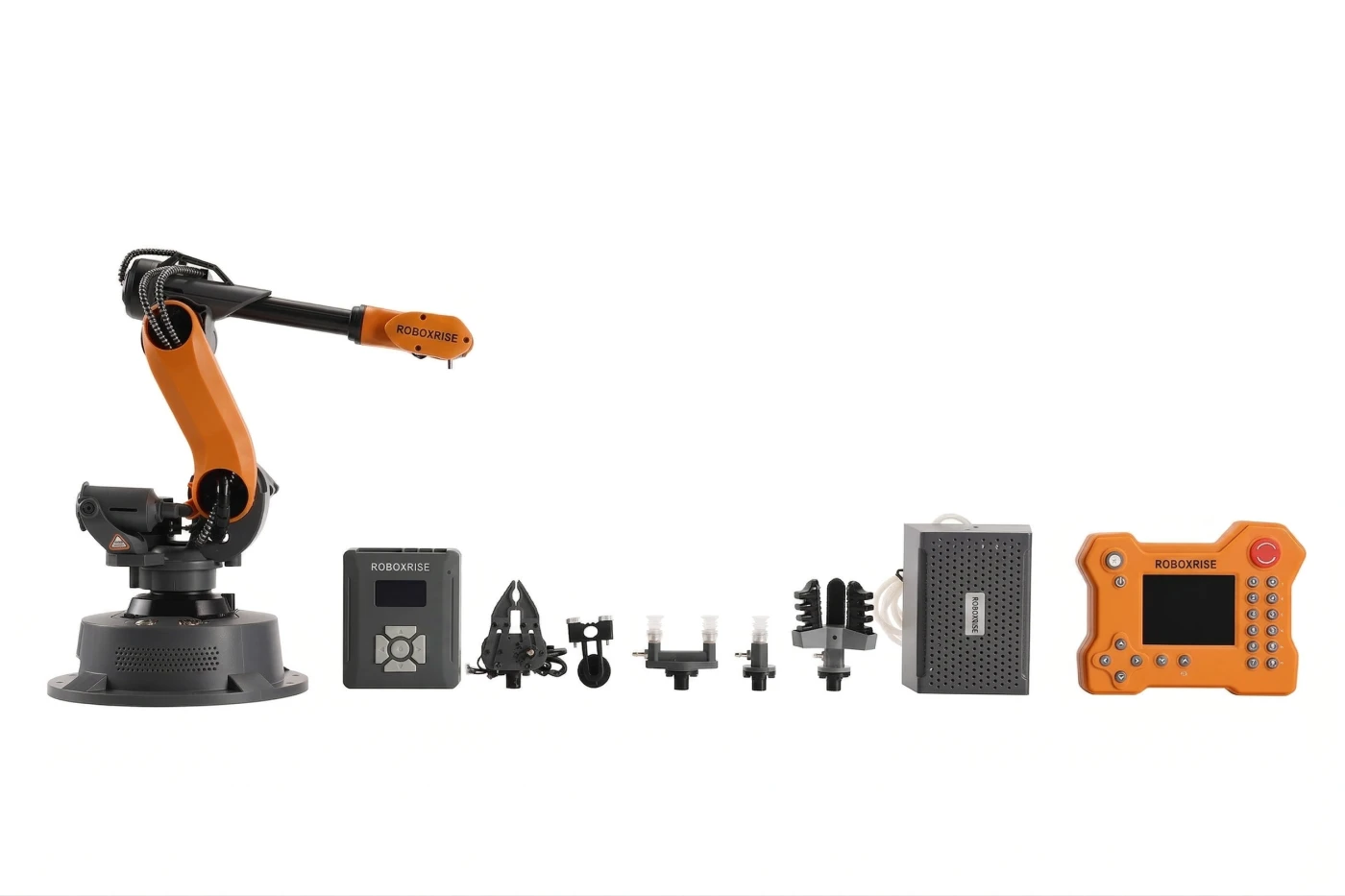

What is included?
Hardware in the box, plus what RoboxRise delivers with it.
In the box
- ROBOXRISE Mirobot robotic arm × 1
- Power cable & High-speed USB cable & IDC cable × 1
- Pen holder × 1
- Micro servo gripper × 1
- Multifunctional extender box × 1
- Mirobot sticker × 1
- Handbook × 1
- Pneumatic set (including pneumatic box, suction cup, two-finger gripper, three-finger soft gripper) × 1
- Robot Controller (with USB cable) × 1
- Online Textbook (ROBOXRISE Mirobot Robotic Arm Programming and Control) × 1
Delivered by RoboxRise
- Official textbook — RoboxRise Mirobot Robotic Arm Programming and Control
- Experiment handbook, lesson resources, sample code and demo videos
- Faculty training (train-the-trainer) for your lab staff
- Installation and commissioning at your institution
- Technical support from India-based robotics engineers
- Defined warranty and spares support — terms in your quotation
Experiments
20 of the lab experiments students perform on this system.
- Robot system overview, homing and safe start-up
- Joint vs Cartesian jogging
- Base, tool and user coordinate frames
- Deriving the DH parameters of a 6-axis arm
- Forward and inverse kinematics verification
- Point-to-point, linear and arc motion
- Trajectory planning and path smoothing
- Teach-and-play programming
- Blockly pick-and-place program
- Controlling the arm from Python
- Palletising and de-palletising with a suction cup
- Gripping strategies: two-finger vs three-finger soft gripper
- Writing and drawing — path accuracy study
- Robot I/O and external signals
- ROS motion simulation with URDF and RViz
- Real-robot control with MoveIt! and Gazebo
- MATLAB kinematic simulation
- Motion control from a microcontroller (AVR)
- Motion control from a PLC
- Conveyor tracking and colour sortingneeds Conveyor Belt Set + AI Vision Set
Grow your lab
Compatible systems that connect directly to this one.
Technical specifications
| Axes | 6 (7th axis with optional Sliding Rail Set) |
|---|---|
| Repeatability | ±0.2 mm |
| Payload | 250 g |
| Working radius | 315 mm |
| Net weight | 1.5 kg |
| Structure | Industrial 6-axis architecture at 1:10 scale |
| Control modes | PC software, teach pendant, vision control |
| Communication | USB, Bluetooth, Wi-Fi, RS485 |
| Programming | Blockly (graphical), teach-and-play, Python, C/C++, G-code |
| Supported platforms | ROS, MATLAB, CoppeliaSim (V-REP), AVR microcontroller, PLC, OpenCV / OpenMV, YOLOv5, TensorFlow, PyTorch, Omniverse |
| End-effectors in kit | Micro servo gripper, suction cup, pneumatic two-finger gripper, three-finger soft gripper, pen holder |
| Applications | Writing & drawing, laser engraving, material handling, palletising, sorting |
Specifications may vary by configuration. Your formal quotation lists the exact configuration supplied.
See it working
Warranty & support
All RoboxRise institutional systems are supplied with defined warranty, technical support and commissioning terms according to the selected configuration. Detailed commercial terms are provided with the formal quotation.
Questions
Education, Professional or Advanced?
All three use the same Mirobot arm. Professional adds a dedicated robot controller for stand-alone programs and cell integration; Advanced adds an AI voice-control box and an electromagnetic gripper on top of that.
Is this the kit used inside the training cells?
Yes — the Fruit Picking, Logistic Warehouse, Sorting and Assembly cells are built around the Mirobot Professional Kit.
Can we add vision, a conveyor or a rail later?
Yes. The AI Vision Set, Conveyor Belt Set and Sliding Rail Set connect directly to Mirobot.
